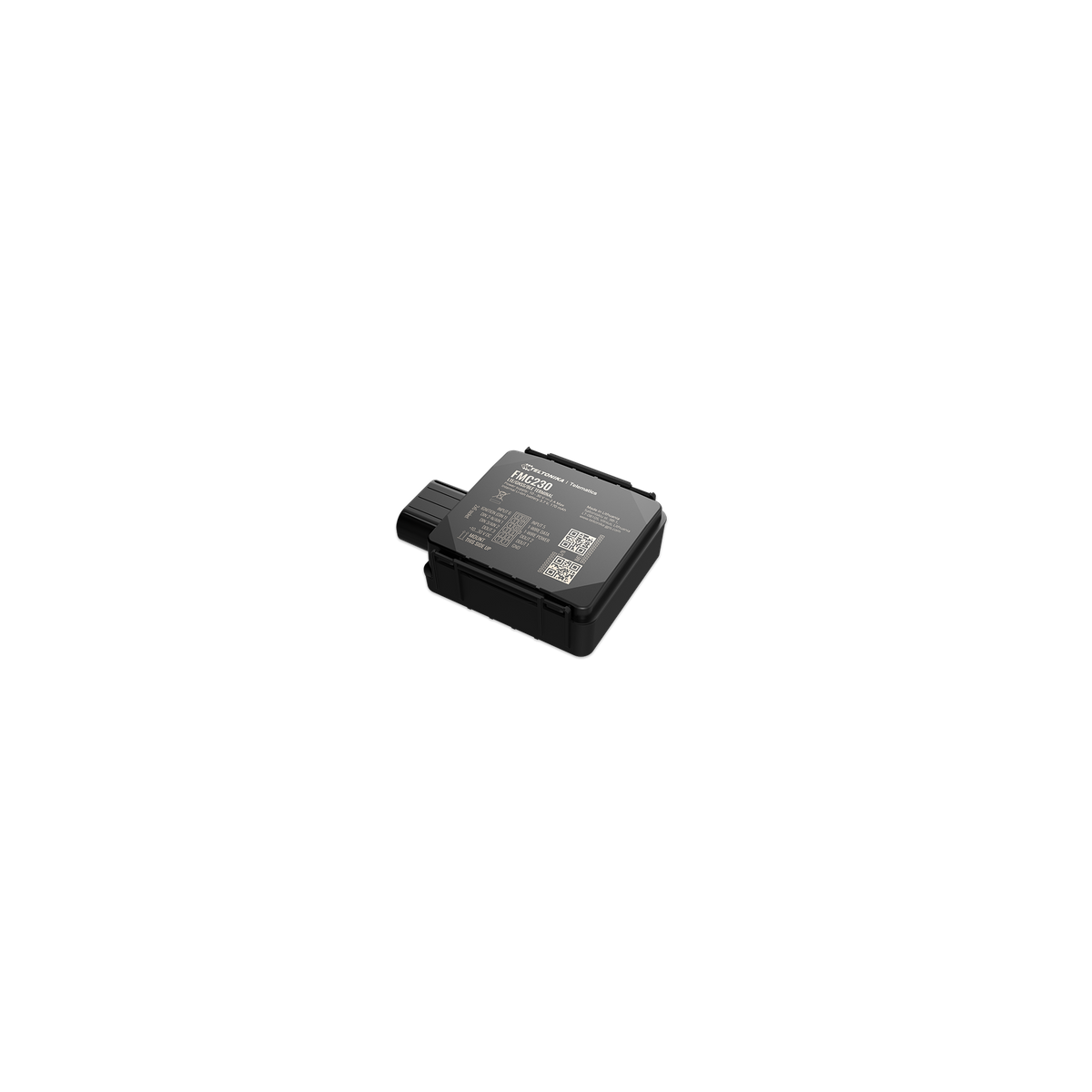

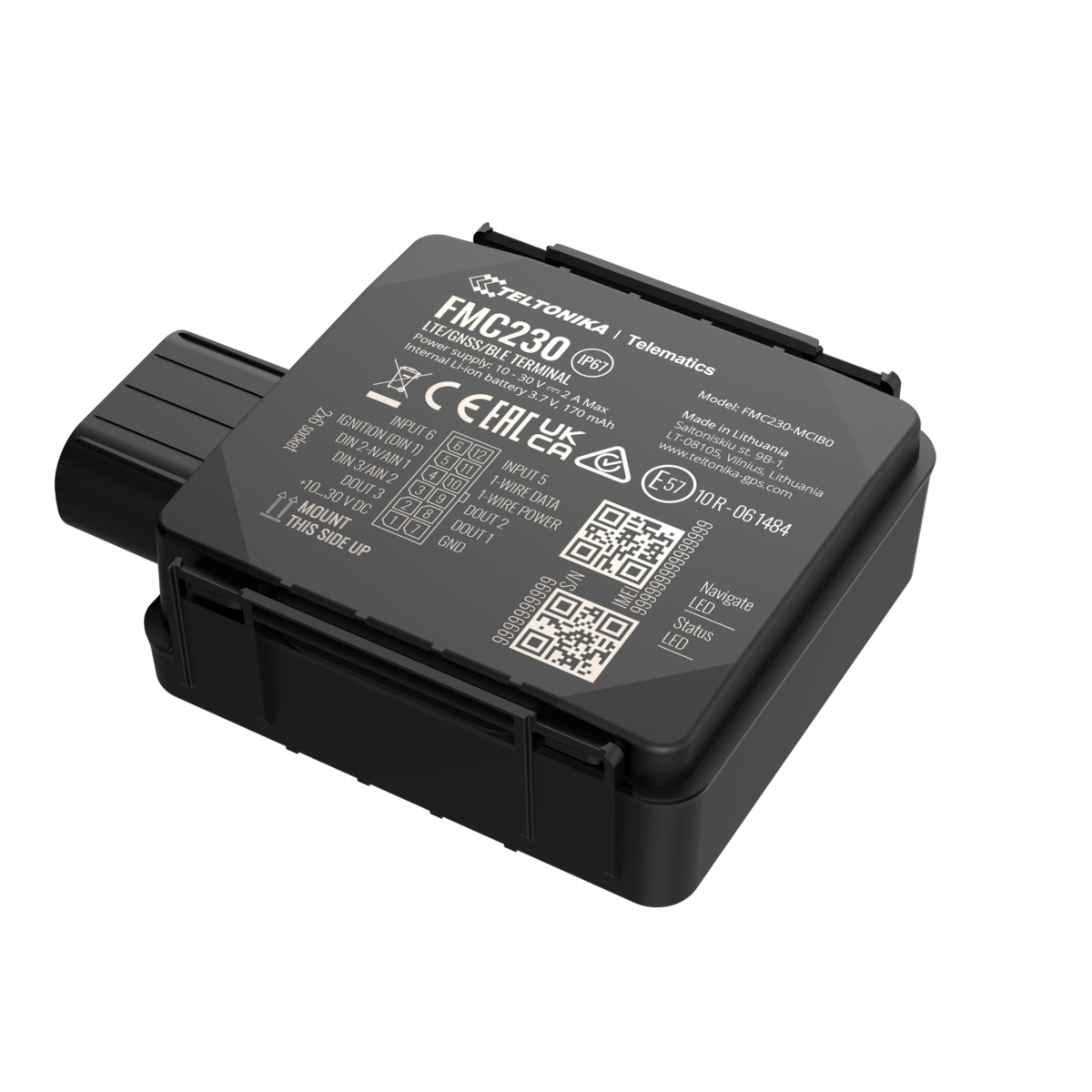

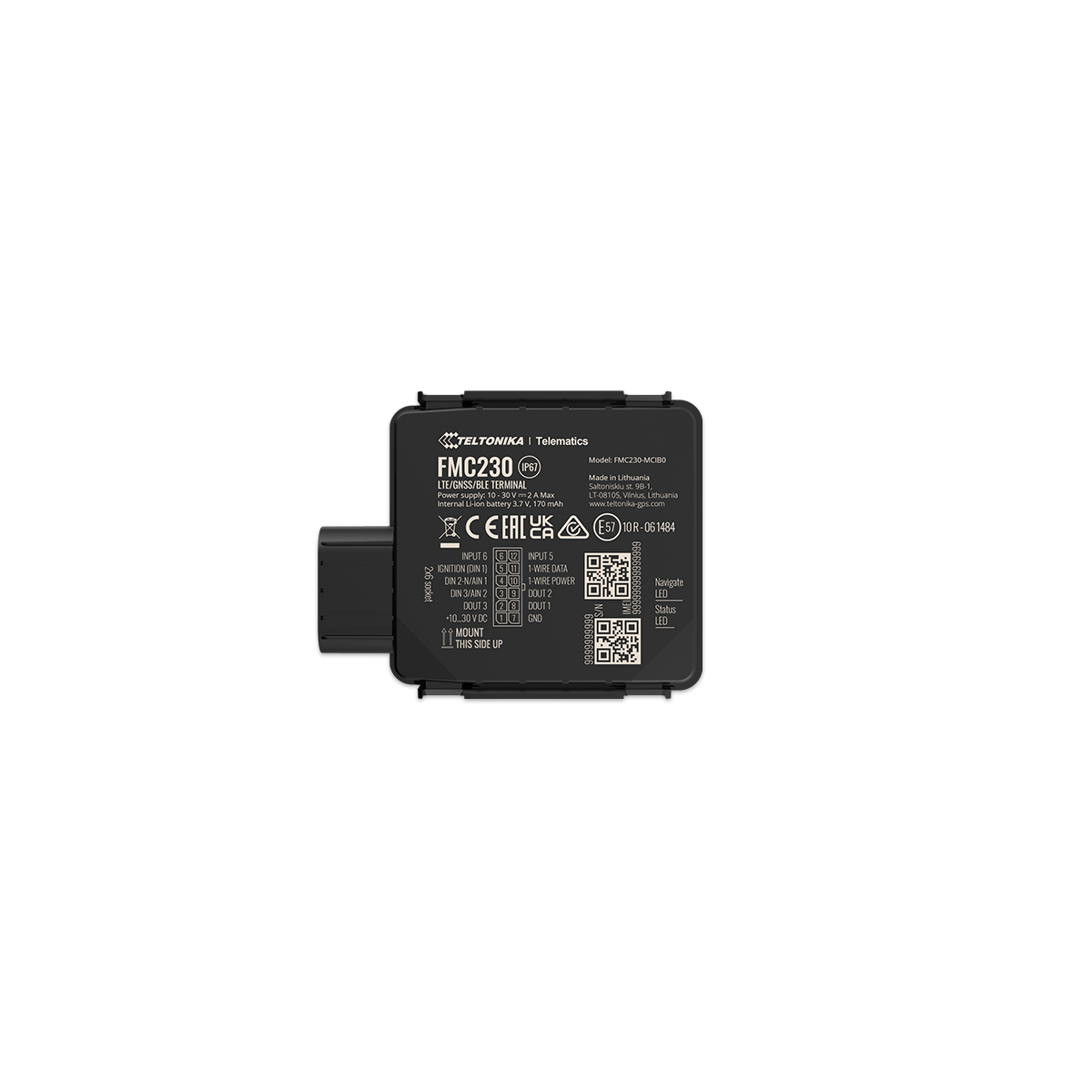

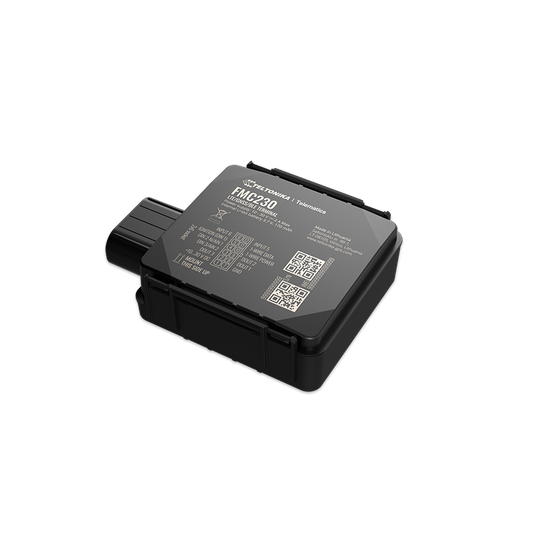

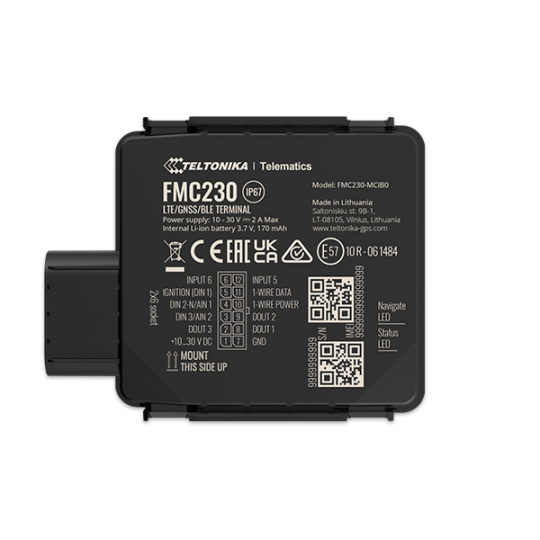

TELTONIKA FMC230 - 4G
€53.00
Tax included
The TELTONIKA FMC230 GPS tracker GPS is a tracker that includes 2G (GSM) backup compatibility. Developed on the existing Teltonika platform, the FMC230 is water and dust resistant with 4G (LTE Cat 1) network coverage. The TELTONIKA FMC230 features internal GNSS and LTE antennas, multiple configurable inputs (digital, analog, negative, and pulse), three DOUT outputs, Bluetooth connectivity, and an integrated backup battery. Designed for quick and flexible installation, it has a dedicated negative input, simplifying and accelerating the integration of accessories such as door sensors, alarm buttons, seat belt detectors, and other similar devices, ensuring a reliable, comprehensive, and easy-to-deploy tracking solution.
Hurry up! Only
10
item(s) left in Stock!
The TELTONIKA FMC230 GPS tracker is a tracker that includes 2G (GSM) backup compatibility. Developed on the existing Teltonika platform, the FMC230 is water and dust resistant with 4G (LTE Cat 1) network coverage. The TELTONIKA FMC230 features internal GNSS and LTE antennas, multiple configurable inputs (digital, analog, negative, and pulse), three DOUT outputs, Bluetooth connectivity, and an integrated backup battery. Designed for quick and flexible installation, it has a dedicated negative input, simplifying and accelerating the integration of accessories such as door sensors, alarm buttons, seat belt detectors, and other similar devices, ensuring a reliable, comprehensive, and easy-to-deploy tracking solution.
Teltonika FMC230 – Technical Specifications
| MODULE | FMC230-MBIB0: MeiG SLM320-E with Teltonika FMC230 FMC230-MCIB0: MeiG SLM320-LA with Teltonika FMC230 |
|---|---|
| Technology | LTE (Cat 1) 4G/ 2G (GSM/GPRS) / GNSS / Bluetooth® LE |
| GNSS | |
| GNSS systems | GPS, GLONASS, GALILEO, BEIDOU, QZSS, AGPS |
| Receiver | 33 tracking channels |
| Tracking sensitivity | -165 dBm |
| Position accuracy | < 2.5 m CEP |
| Velocity accuracy | < 0.1 m/s (within ±15 % error) |
| Hot start | < 1 s |
| Warm start | < 25 s |
| Cold start | < 35 s |
| CELLULAR | |
| Cellular technology | LTE Cat 1, GSM |
| 2G bands | GSM B2 / B3 / B5 / B8 (both MBIB0 & MCIB0) |
| 4G LTE bands | FMC230-MBIB0 (EU/MEA): LTE FDD B1/B3/B7/B8/B20/B28, LTE-TDD B38/B40/B41 FMC230-MCIB0 (APAC/LATAM): LTE FDD B1/B2/B3/B4/B5/B7/B8/B20/B28, LTE-TDD B40 |
| Data transfer | LTE FDD: max 10 Mbps (DL) / 5 Mbps (UL) LTE TDD: max 8 Mbps (DL) / 2 Mbps (UL) GSM GPRS: max 85.6 Kbps (DL/UL) |
| Data support | SMS (text/data) |
| POWER | |
| Input voltage range | 10 – 30 V DC with overvoltage protection |
| Internal backup battery | 170 mAh Li-Ion battery, 3.7 V (0.63 Wh) |
| Internal fuse | 3 A, 125 V |
| Power consumption | At 12 V < 3 mA (Ultra Deep Sleep) At 12 V < 5 mA (Deep Sleep) At 12 V < 16 mA (Online Deep Sleep) At 12 V < 18 mA (GPS Sleep) At 12 V < 33 mA (nominal, no load) At 12 V < 2 A max (with full load / peak) |
| BLUETOOTH | |
| Specification | Bluetooth 4.0 + LE |
| Supported peripherals | Temperature & humidity sensor, OBDII dongle, Inateck Barcode Scanner, universal BLE sensors support |
| INTERFACES | |
| Digital Inputs | 3 |
| Negative Inputs | 1 (Digital Input 2) |
| Impulse Inputs | 2 (Digital Input 1, Digital Input 2) |
| Digital Outputs | 3 |
| Analog Inputs | 2 |
| CAN Adapter Inputs | 1 |
| 1-Wire | 1 (1-Wire data) |
| GNSS antenna | Internal high-gain |
| Cellular antenna | Internal high-gain |
| USB | Micro-USB 2.0 |
| LED indication | 2 status LED lights |
| SIM | Micro-SIM or eSIM |
| Memory | 128 MB internal flash memory |
| PHYSICAL SPECIFICATION | |
| Dimensions (device) | 70.5 × 67.0 × 25.6 mm (L × W × H) |
| Dimensions (with connector) | 85.0 × 67.0 × 25.6 mm (L × W × H) |
| Weight | 79 g |
| OPERATING ENVIRONMENT | |
| Operating temperature (without battery) | -20 °C to +85 °C |
| Storage temperature (without battery) | -20 °C to +85 °C |
| Operating temperature (with battery) | -20 °C to +60 °C |
| Storage temperature (with battery) | -20 °C to +45 °C |
| Operating humidity | 5 % to 95 % non-condensing |
| Ingress Protection Rating | IP67 (water & dust resistant) |
| Battery charge temperature | 0 °C to +45 °C |
| Battery discharge temperature | -20 °C to +60 °C |
| Battery storage temperature | -20 °C to +45 °C for 1 month / -20 °C to +35 °C for 6 months |
| FEATURES | |
| Sensors | Internal accelerometer |
| Scenarios | Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, DOUT Control via Call, Excessive Idling detection, Immobilizer, iButton Read Notification, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip |
| Sleep modes | GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep |
| Configuration & Firmware update | FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile app |
| SMS | Configuration, Events, DOUT control, Debug |
| GPRS/LTE commands | Configuration, DOUT control, Debug |
| Time synchronization | GNSS, NITZ, NTP |
| Fuel monitoring | LLS (analog), LV-CAN200, ALL-CAN300, CAN-CONTROL, OBDII dongle |
| Ignition detection | Digital Input 1, Accelerometer, External Power Voltage, Engine RPM (via CAN adapters, OBDII dongle) |
