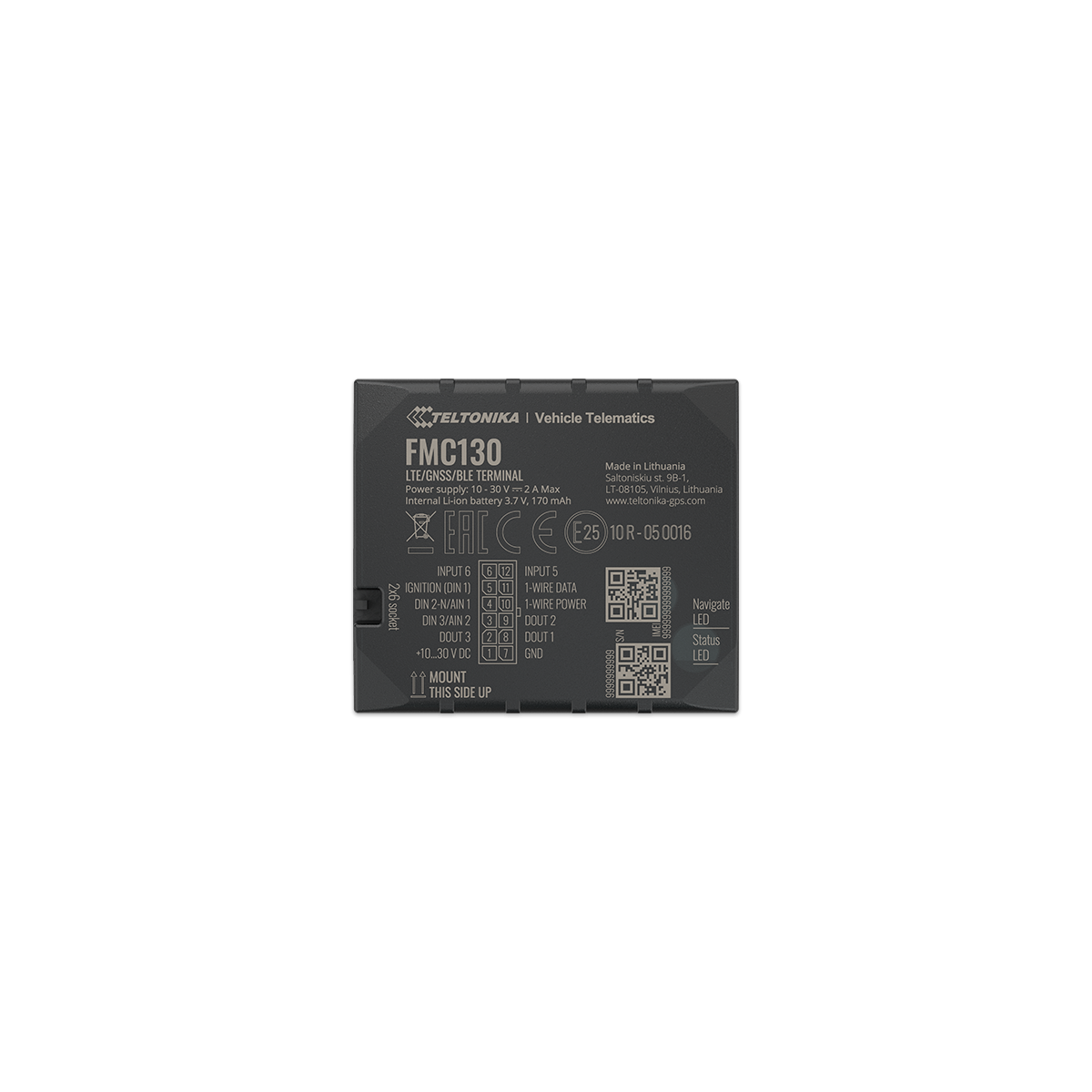

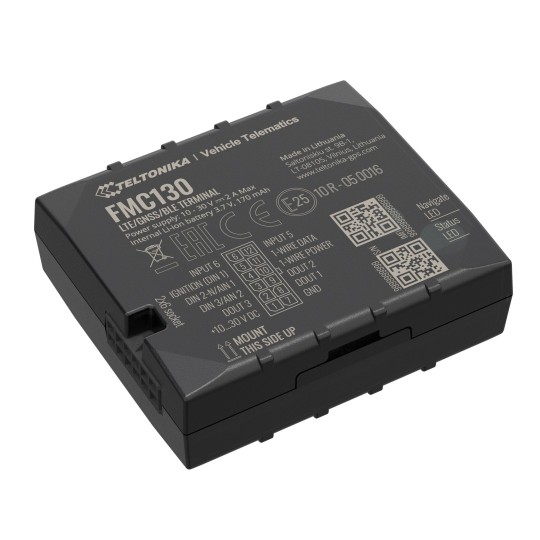

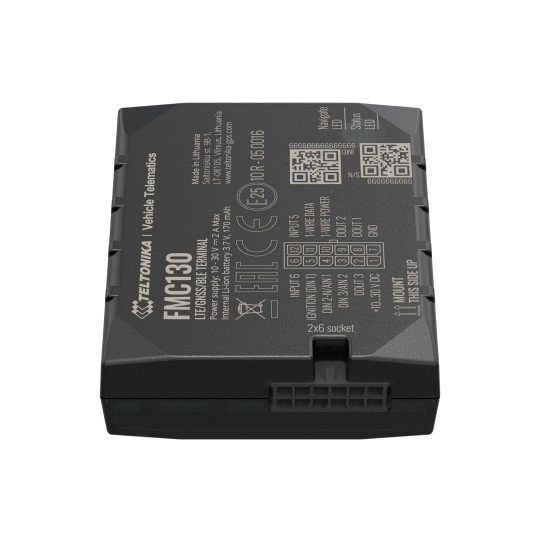

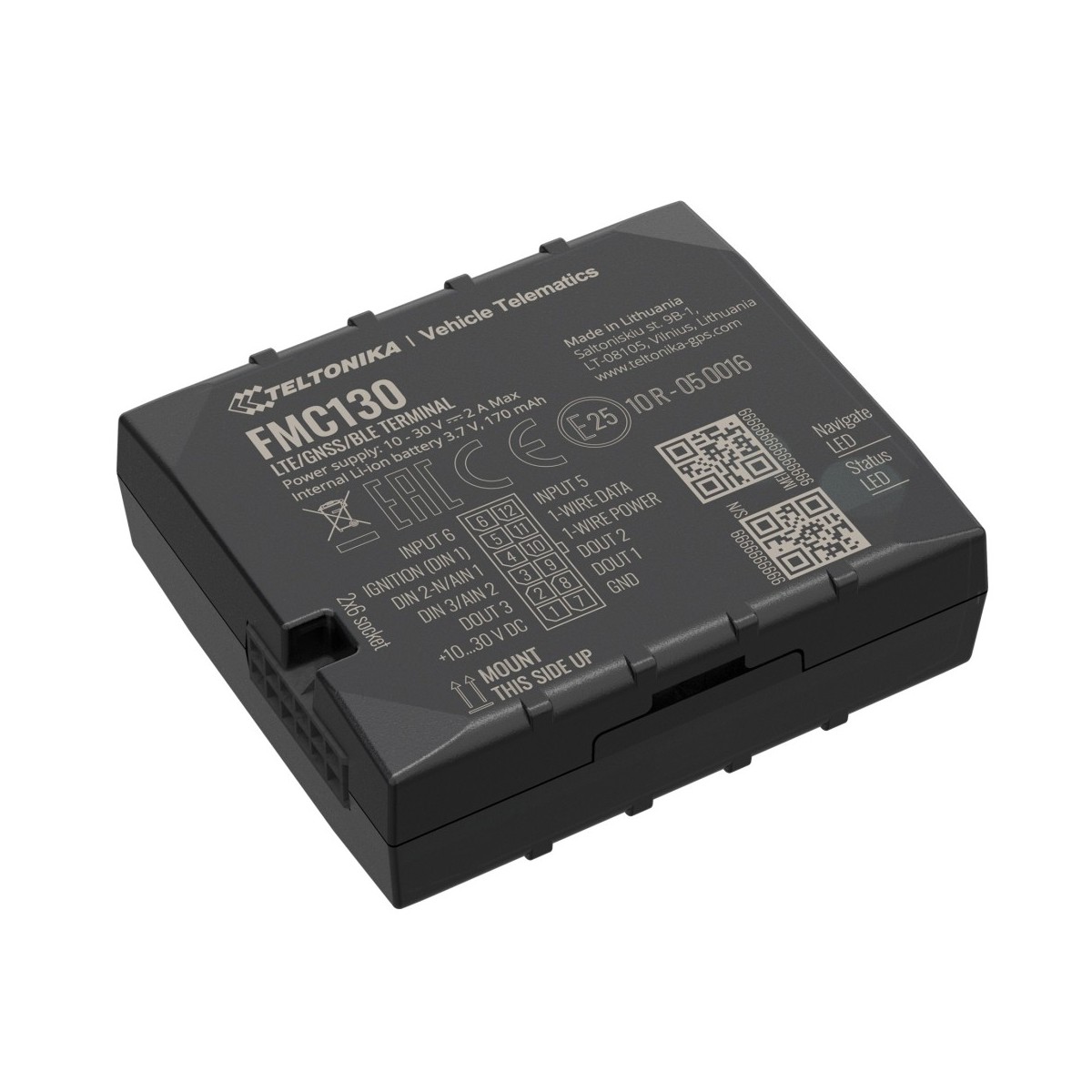

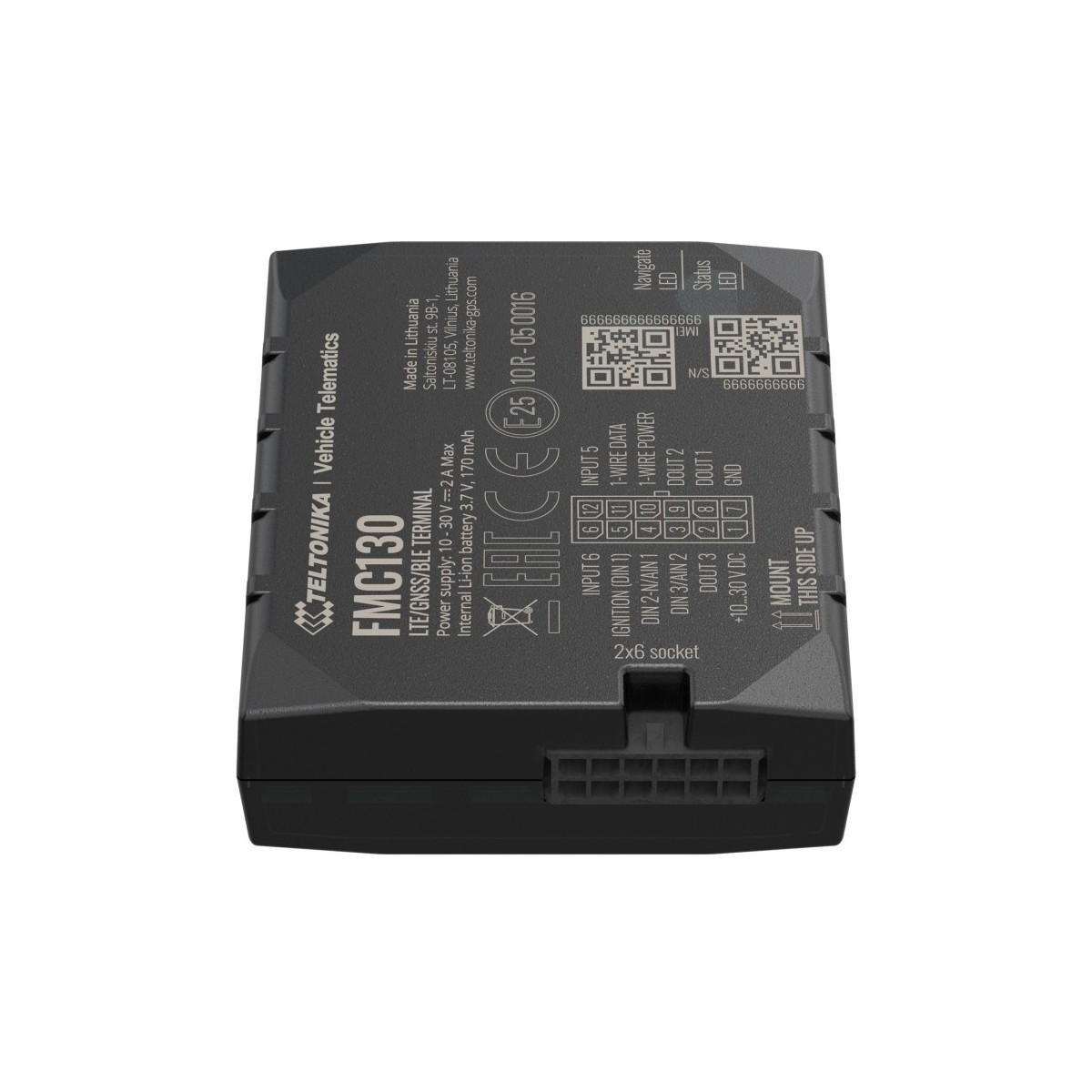

TELTONIKA FMC130
€47.99
Tax included
TELTONIKA FMC130 is a small device from ADVANCED FMC 4G (LTE Cat 1) series with network coverage including 3G (UMTS) and 2G (GSM) backup compatibility. It is equipped with internal GNSS, LTE antennas, configurable digital/analog/negative and pulse inputs, three DOUT outputs, Bluetooth connectivity and a battery backup.FMC130
Hurry up! Only
50
item(s) left in Stock!
TELTONIKA FMC130 is a small device from the ADVANCED FMC 4G (LTE Cat 1) series with network coverage including 3G (UMTS) and 2G (GSM) backup compatibility. It is equipped with internal GNSS, LTE antennas, configurable digital/analog/negative and pulse inputs, three DOUT outputs, Bluetooth connectivity and a battery backup. The FMC130 has developed on the existing Teltonika FMB platform, so it retains all the features of the FMB130 and builds on them with its industry-leading connectivity coverage.
Module
- Name: Quectel EC21-AU, Quectel EC21-EC, Teltonika TM2500
- Technology: LTE (Cat 1) / 3G (UMTS/HSPA) / 2G (GSM/GPRS) / GNSS / Bluetooth
GNSS
- GNSS: GPS, GLONASS, GALILEO, BEIDOU, QZSS, AGPS
- Receiver: 33 tracking channels
- Tracking sensitivity: -165 dBM
- Accuracy: < 3 m
- Hot start: < 1 s
- Warm start: < 25 s
- Cold start: < 35 s
Cellular
- Technology: LTE Cat 1, UMTS, GSM
- 2G bands: EC21-AU: GSM B2/B3/B5/B8; EC21-EC: GSM B3/B8
- 3G bands: EC21-AU: WCDMA B1/B2/B5/B8; EC21-EC: WCDMA B1/B8
- 4G bands: EC21-AU: LTE FDD B1/B2/B3/B4/B5/B7/B8/B28; LTE TDD B40 EC21-EC: LTE FDD B1/B3/B7/B8/B20/B28A
- Data transfer: LTE FDD: Max 10 Mbps (DL) / 5 Mbps (UL); LTE TDD: Max 8.96 Mbps (DL) / 3.1 Mbps (UL); UMTS: Max 384 Kbps (DL/UL); GSM: Max 107 Kbps (DL) / 85.6 Kbps (UL)
- Data support: SMS (text/data)
Power
- Input voltage range: 10 – 30 V DC with overvoltage protection
- Internal back-up battery: 170 mAh Li-Ion, 3.7 V (0.63 Wh)
Bluetooth
- Specification: 4.0 + LE
- Supported peripherals: Temperature and humidity sensor, OBDII dongle, Inateck barcode scanner, universal BLE sensors
Physical specification
- Dimensions: 65 × 56.6 × 20.6 mm (L × W × H)
- Weight: 55 g
Operating environment
- Operating temperature (without battery): -40°C to +85°C
- Storage temperature (without battery): -40°C to +85°C
- Operating humidity: 5% to 95% non-condensing
- Ingress protection rating: IP41
- Battery charge temperature: 0°C to +45°C
- Battery discharge temperature: -20°C to +60°C
- Battery storage temperature: -20°C to +45°C for 1 month / -20°C to +35°C for 6 months
Interface
- Digital inputs: 3
- Negative inputs: 1 (Digital Input 2)
- Impulse inputs: 2 (Digital Input 1, Digital Input 2)
- Digital outputs: 3
- Analog inputs: 2
- CAN adapter inputs: 1
- 1-Wire: 1
- GNSS antenna: Internal high gain
- Cellular antenna: Internal high gain
- USB: 2.0 Micro-USB
- LED indication: 2 status LED lights
- SIM: Micro-SIM + eSIM
- Memory: 128 MB internal flash memory
Features
- Sensors: Accelerometer
- Scenarios: Green driving, overspeeding detection, GNSS fuel counter, DOUT control via call, excessive idling detection, immobilizer, iButton read notification, unplug detection, towing detection, crash detection, auto geofence, manual geofence, trip
- Sleep modes: GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
- Configuration and firmware update: FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (configuration)
- SMS: Configuration, events, DOUT control, debug
- GPRS commands: Configuration, DOUT control, debug
- Time synchronization: GNSS, NITZ, NTP
- Fuel monitoring: LLS (Analog), LV-CAN200, ALL-CAN300, CAN-CONTROL, OBDII dongle
- Ignition detection: Digital Input 1, accelerometer, external power voltage, engine RPM (CAN adapters, OBDII dongle)
