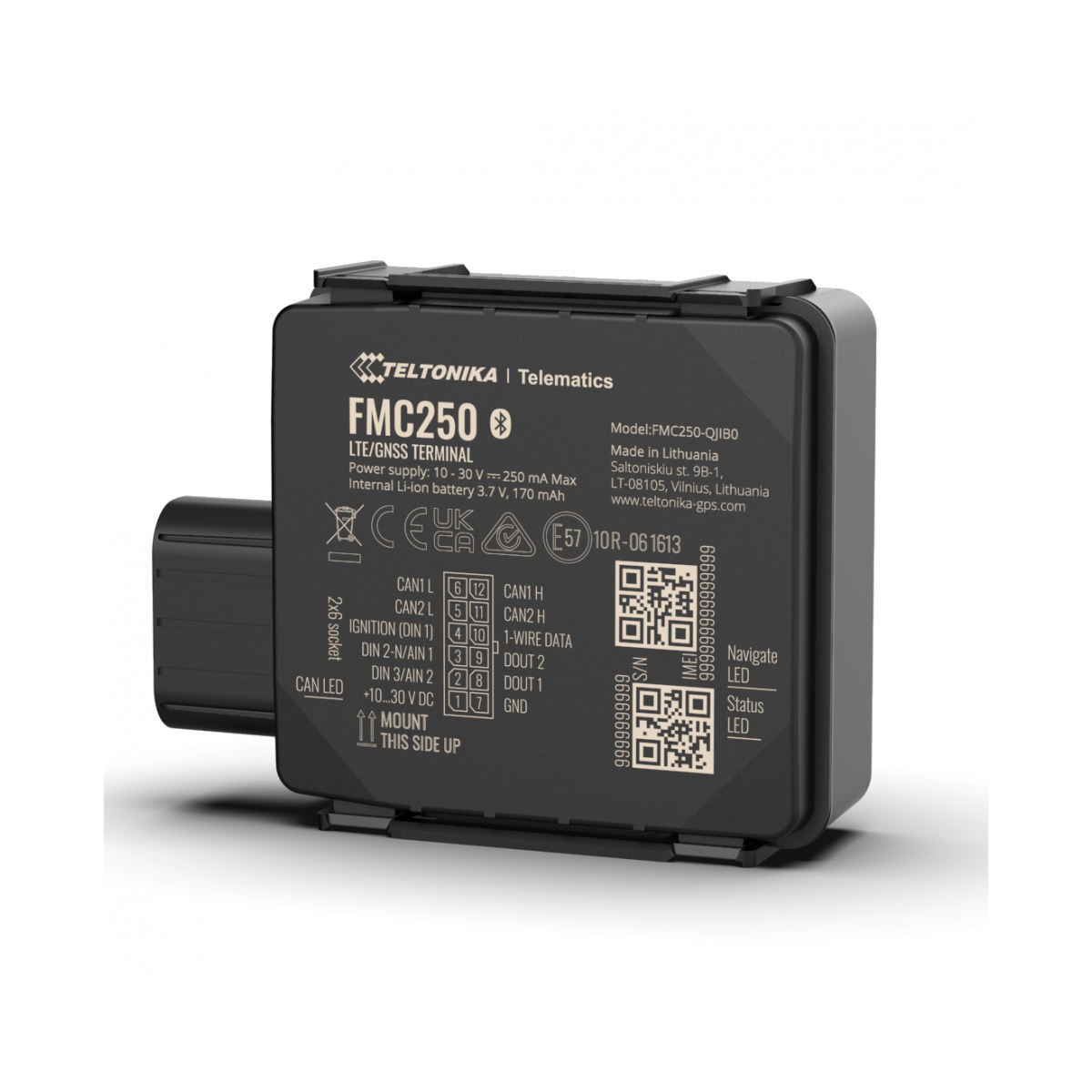

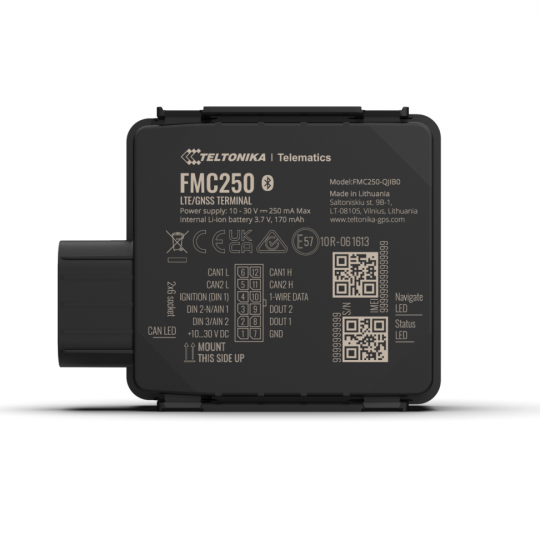

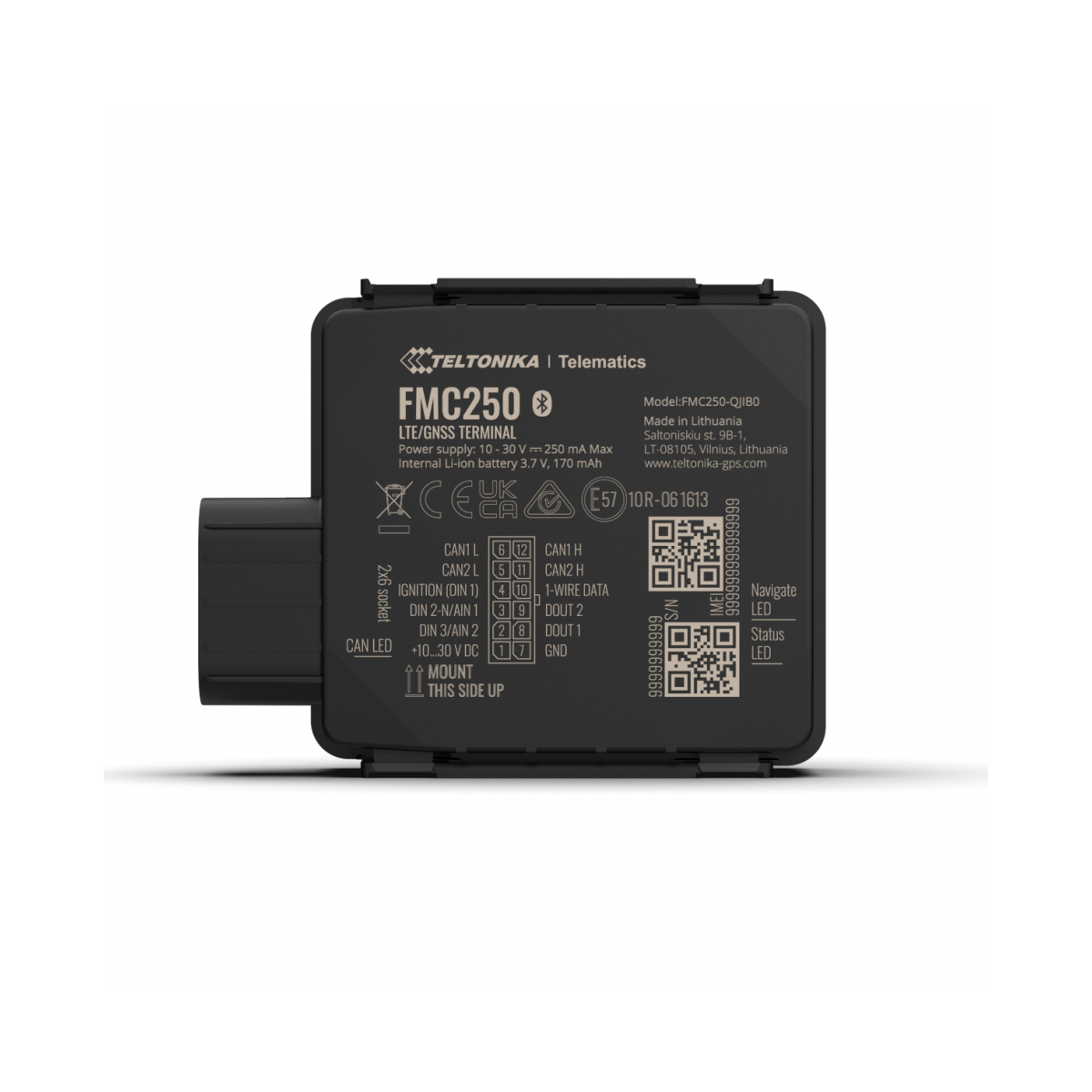

TELTONIKA FMC250 (4G)

Le Teltonika FMC250 meilleur prix est un dispositif rapport prix 4G LTE Cat 1/2G GNSS/GSM/Bluetooth LE étanche (IP67) et doté d’un processeur de données CAN intégré. Il combine dans un seul boîtier ultra-résistant un traceur GPS et un adaptateur CAN : conçu pour des environnements exigeants, il permet la lecture des données CAN sur véhicules légers, véhicules électriques, camions, bus et machines spéciales. Grâce au support complet des paramètres CAN (consommation, niveau de carburant, odomètre, vitesse moteur, etc.) et un firmware actualisé, le FMC250 s’impose au prix comme la solution idéale pour : la gestion de flotte, la logistique avancée, le transport de marchandise, l’autopartage, les véhicules industriels.

• Water-resistant 4G LTE Cat 1 tracker with integrated CAN data processor.
• Robust IP67-rated casing provides trusted protection against dust and resistance to water.
• Built-in CAN bus data reading chip.
• Reading CAN data from light & electric vehicles, trucks, buses and special machinery.
• CAN data reading from EVs.
• Bringing new value and expanding usage scenarios with more than 100 supported vehicles in the EV market.
• Supported vehicle list with all available manufacturer models and parameters.

Properties
• FMC250-QJIB0: Quectel EG915U-EU with Teltonika TM2500.
• Technology: LTE Cat 1 / GSM / GPRS / GNSS / Bluetooth.
• GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS.
• Tracking sensitivity: -165 dBM.
• Receiver: 33 tracking channel.
• 99 acquisition channel.
• Position Accuracy: < 2.5 m CEP.
• Velocity Accuracy: < 0.1 m/s (within +/- 15% error).
• Hot start: < 1 s.
• Warm start: < 25 s.
• Cold start: < 35 s.

Cellular
• Technology: LTE Cat 1, GSM.
• 2G bands:
 • FMC250-QJIB0: GSM: B2/B3/B5/B8.
 • FMC250-QKIB0: GSM: B2/B3/B5/B8.
• 4G LTE bands:
 • FMC250-QJIB0: LTE FDD: B1/B3/B7/B8/B20/B28.
 • FMC250-QKIB0: LTE FDD: B2/B3/B4/B5/B7/B8/B28/B66.
• Data transfer:
 • LTE FDD: Max 10 Mbps (DL) / Max 5 Mbps (UL).
 • LTE TDD: Max 85.6 Mbps (DL) / Max 85.6 Mbps (UL).
 • GSM: GPRS: Max 85.6 Kbps (DL) / Max 85.6 Kbps (UL).
• Data support: SMS (text/data).

Power
• Input voltage range: 10–30 V DC with overvoltage and reverse polarity protection.
• Internal backup battery: 170 mAh Li-Ion battery, 3.7 V (0.63 Wh).
• Power consumption:
 • At 12V < 6 mA (Ultra Deep Sleep).
 • At 12V < 8 mA (Deep Sleep).
 • At 12V < 11 mA (Online Deep Sleep).
 • At 12V < 20 mA (GPS Sleep).
 • At 12V < 35 mA (Nominal with no load).
 • At 12V < 250 mA Max (with full Load / Peak).

Bluetooth®
• Bluetooth 4.0 + LE.

Physical
• Dimensions: 70.5 × 67 × 25.6 mm.
• Weight: 73 g.
• Operating temperature (without battery): -40 °C to +85 °C.
• Storage temperature (without battery): -40 °C to +85 °C.
• Humidity: 5% to 95% non-condensing.
• Ingress Protection Rating: IP67.
• Battery charge temperature: 0 °C to +45 °C.
• Battery discharge temperature: -20 °C to +60 °C.
• Battery storage temperature:
 • -20 °C to +45 °C for 1 month.
 • -20 °C to +35 °C for 6 months.

Interfaces
• Digital Inputs:
 • FMC250-QJIB0: 3
 • FMC250-QKIB0: 2
• Negative Inputs:
 • FMC250-QJIB0: 1 (Digital Input 2)
 • FMC250-QKIB0: –
• Impulse Inputs:
 • FMC250-QJIB0: 2 (Digital Input 1, Digital Input 2)
 • FMC250-QKIB0: 1 (Digital Input 1)
• Analog Inputs:
 • FMC250-QJIB0: 2
 • FMC250-QKIB0: 1
• Digital Outputs:
 • FMC250-QJIB0: 2
 • FMC250-QKIB0: 3
• CAN interfaces: 2
• 1-Wire
• GNSS antenna: Internal High Gain
• Cellular antenna: Internal High Gain
• USB: 2.0 Micro-USB
• LED indication: 3
• Micro-SIM or eSIM
• 128 MB internal flash memory

CAN Data
• Fuel Level (Dashboard).
• Total fuel consumption.
• Vehicle speed (wheel).
• Vehicle driven distance.
• Engine speed (RPM).
• Accelerator pedal position.

Sensors
• Accelerometer.

Scenarios
• Green Driving.
• Over Speeding detection.
• Jamming detection.
• GNSS Fuel Counter.
• DOUT Control Via Call.
• Excessive Idling detection.
• Immobilizer.
• iButton Read Notification.
• Unplug detection.
• Towing detection.
• Crash detection.
• Auto Geofence.
• Manual Geofence.
• Trip.

Sleep modes
• GPS Sleep.
• Online Deep Sleep.
• Deep Sleep.
• Ultra Deep Sleep.

Configuration & Firmware update
• FOTA WEB.
• FOTA.
• Teltonika Configurator (USB, Bluetooth®).

SMS
• Configuration.
• Events.
• DOUT control.
• Debug.

GPRS commands
• Configuration.
• DOUT control.
• Debug.

Time Synchronization
• GNSS.
• NITZ.
• NTP.

Ignition detection
• Digital Input 1.
• Accelerometer.
• External Power Voltage.
• Engine RPM.

Certification & approvals
• CE/RED.
• E-Mark.
• RCM.
• RoHS.
• REACH.

Set of equipment
• GPS TRACKER FMC250 Teltonika.
• Server/SIM card for an additional fee.
• Directions for use in English language.
• Warranty: 24 months.
• Fast delivery.
