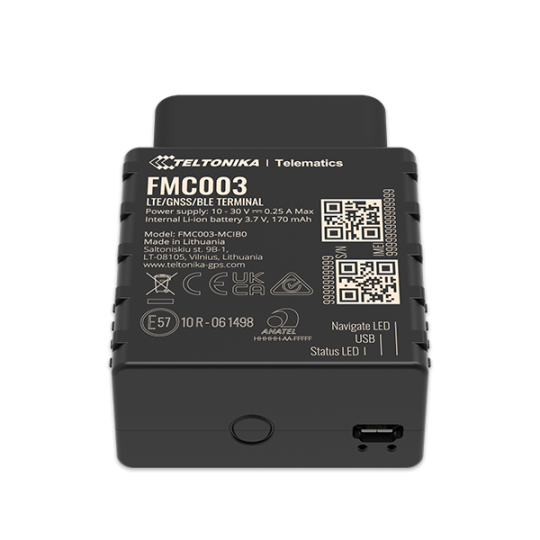

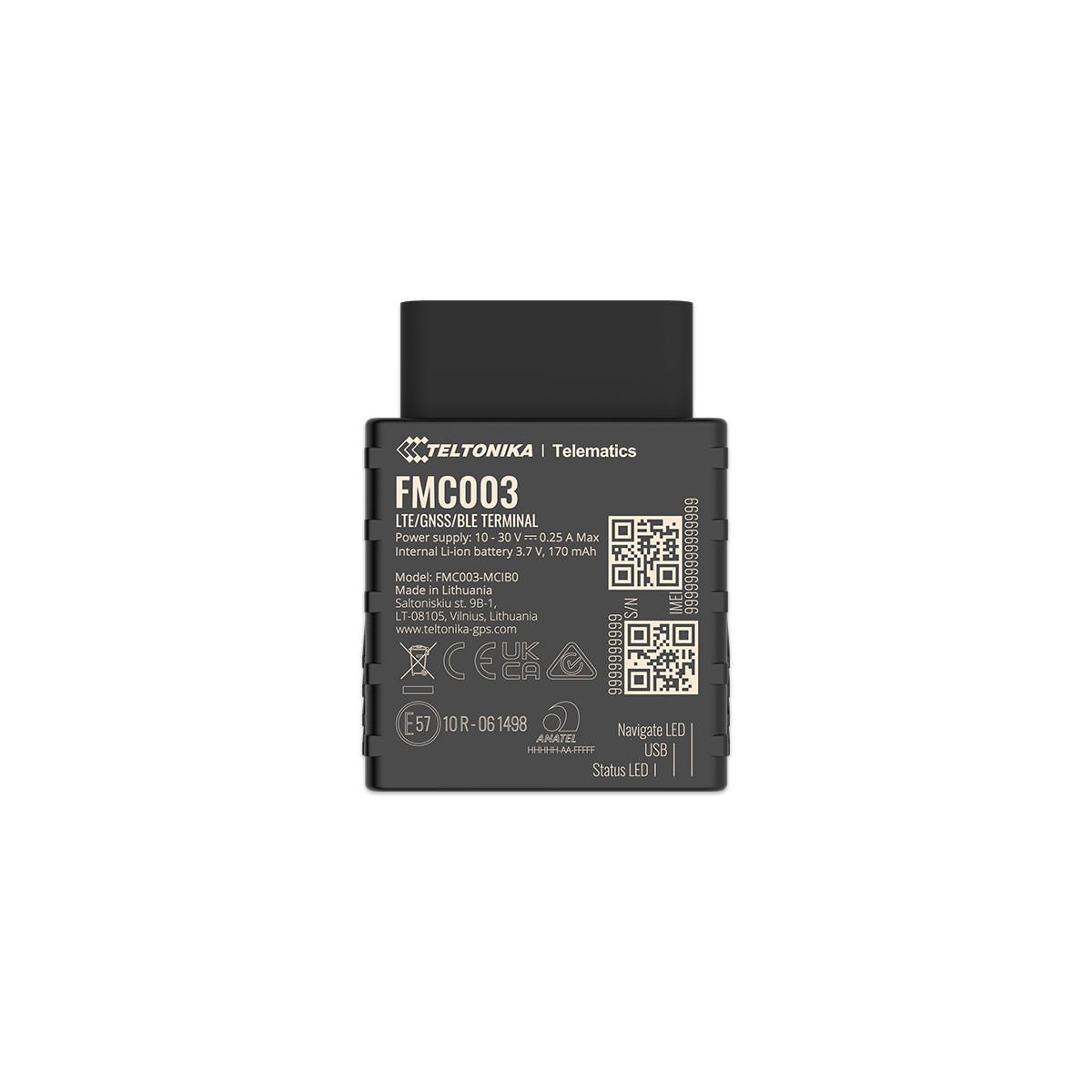

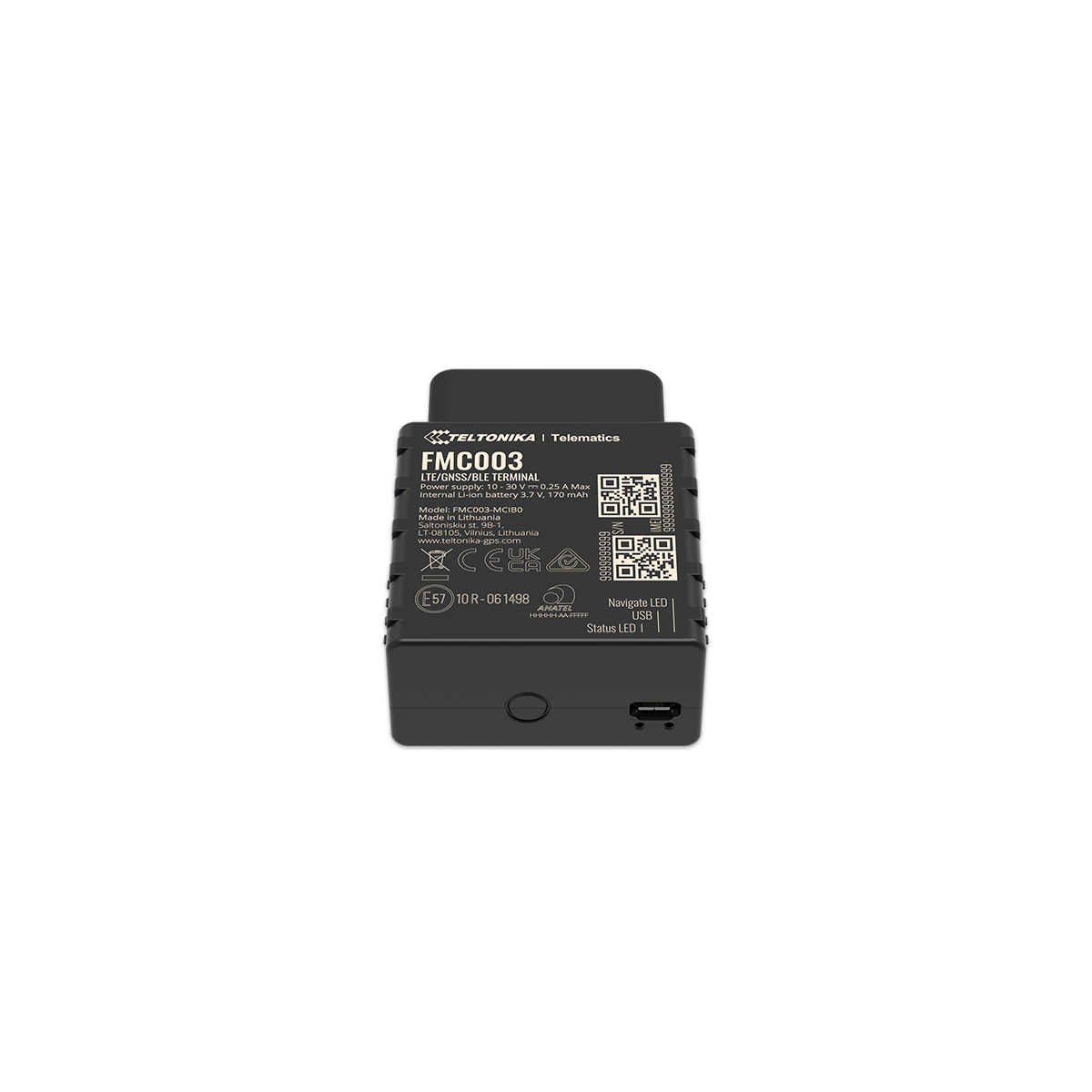

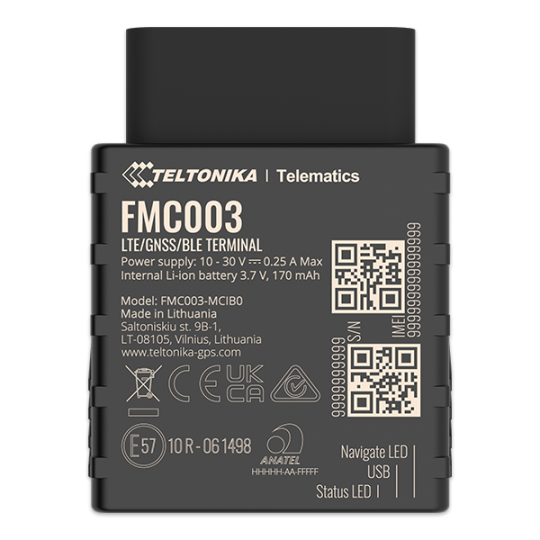

TELTONIKA FMC003 (4G)

Module

• Name: Teltonika TM2500, MeiG SLM320-E, MeiG SLM320-LA
• Technology: LTE (Cat 1) / 2G (GSM/GPRS) / GNSS / Bluetooth

GNSS

• GNSS: GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
• Receiver: 33 channels
• Tracking sensitivity: -165 dBM
• Accuracy: < 2.5 m CEP
• Hot start: < 1 s
• Warm start: < 25 s
• Cold start: < 35 s

Cellular

• Technology: GSM
• 2G bands: GSM B2/B3/B5/B8
• 4G bands: SLM320-E: LTE FDD B1/B3/B7/B8/B20/B28, LTE-TDD B38/B40/B41
  SLM320-LA: LTE FDD B1/B2/B3/B4/B5/B7/B8/B20/B28, LTE-TDD B40
• Data transfer: LTE FDD: Max 10 Mbps (DL) / Max 5 Mbps (UL)
  LTE TDD: Max 8 Mbps (DL) / Max 2 Mbps (UL)
  GSM GPRS: Max 85.6 Kbps (DL/UL)
• Data support: SMS (text/data)

Power

• Supply voltage range: 10 – 30 V DC with overvoltage protection
• Backup battery: 170 mAh Li-Ion battery 3.7 V (0.63 Wh)

Bluetooth

• Specification: 4.0 + LE
• Supported peripherals: Temperature and humidity sensor, Inateck barcode scanner, universal BLE sensors support

OBD Interface

• Data: K-Line, CAN bus data
• Data reading: Up to 32 onboard vehicle parameters
• Supported OBD protocols:
  ISO 9141-2 (5 baud init, 10.4 kbaud)
  ISO 14230-4 KWP (5 baud init, 10.4 kbaud)
  ISO 14230-4 KWP (fast init, 10.4 kbaud)
  ISO 15765-4 CAN (11 bit ID, 250 kbaud)
  ISO 15765-4 CAN (11 bit ID, 500 kbaud)
  ISO 15765-4 CAN (29 bit ID, 250 kbaud)
  ISO 15765-4 CAN (29 bit ID, 500 kbaud)

Interface

• Connection: OBDII socket
• GNSS antenna: Internal high gain
• Cellular antenna: Internal high gain
• USB: 2.0 Micro-USB
• LED indication: 2 status LED lights
• SIM: Micro-SIM
• Memory: 128 MB internal flash memory

Physical Specification

• Dimensions: 67.2 × 49.6 × 25 mm (L × W × H)
• Weight: 63 g

Operating Environment

• Operating temperature (without battery): -40°C to +85°C
• Storage temperature (without battery): -40°C to +85°C
• Operating humidity: 5% to 95% non-condensing
• Ingress Protection Rating: IP41
• Battery charge temperature: +10°C to +45°C
• Battery discharge temperature: -20°C to +60°C
• Battery storage temperature: -20°C to +45°C for 1 month / -20°C to +35°C for 6 months

Features

• Sensors: Accelerometer
• Scenarios: Green driving, overspeeding detection, jamming detection, GNSS fuel counter, excessive idling detection, unplug detection, towing detection, crash detection, auto geofence, manual geofence, trip
• Sleep modes: GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
• Configuration and firmware update: FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (configuration)
• SMS: Configuration, events, debug
• GPRS commands: Configuration, debug
• Time synchronization: GPS, NITZ, NTP
• Fuel monitoring: OBD II
• Ignition detection: Accelerometer, external power voltage, engine RPM
