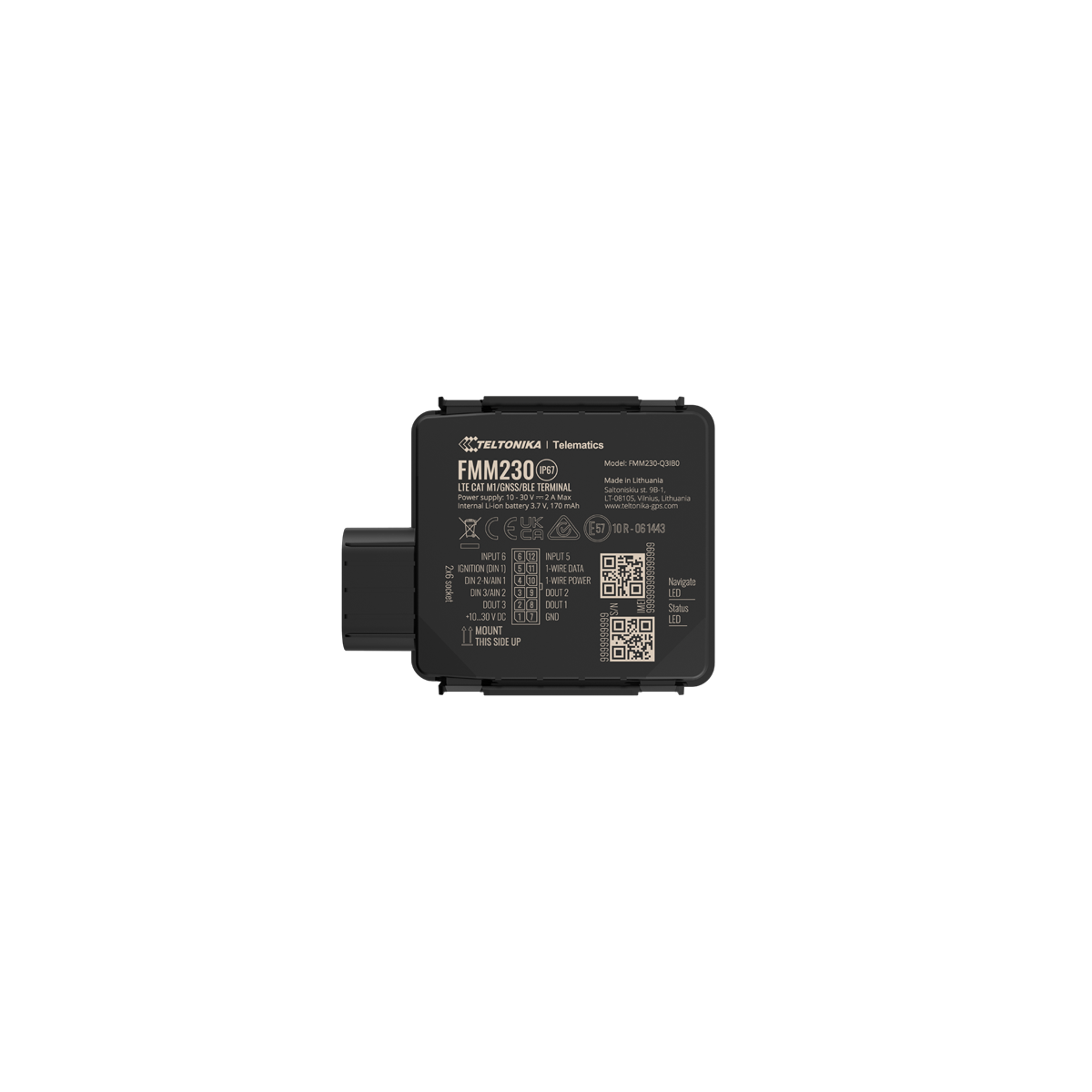

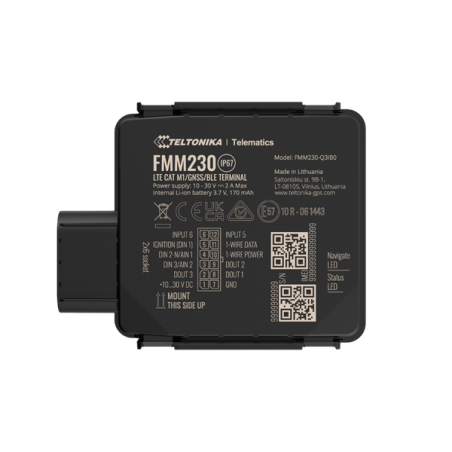

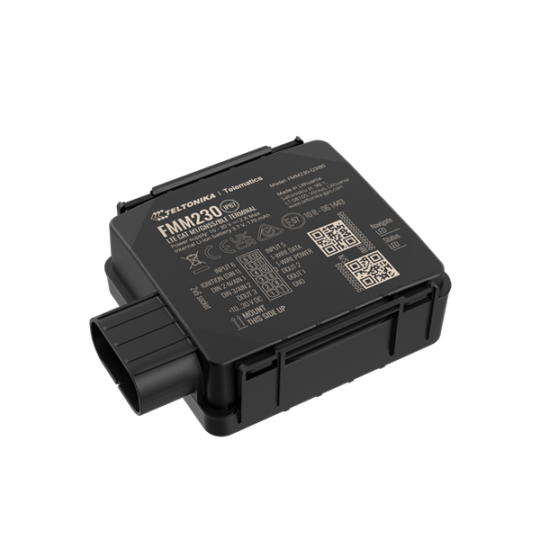

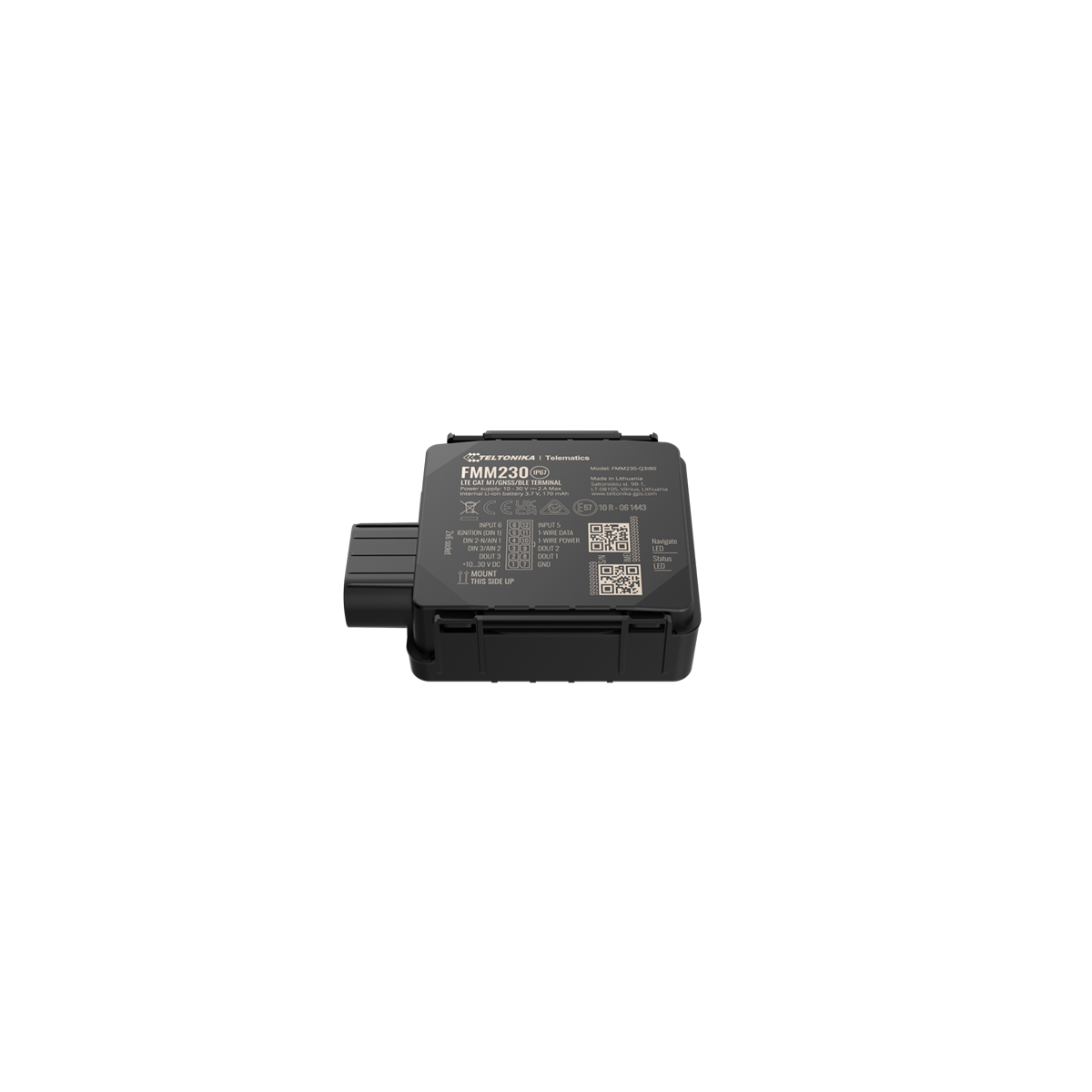

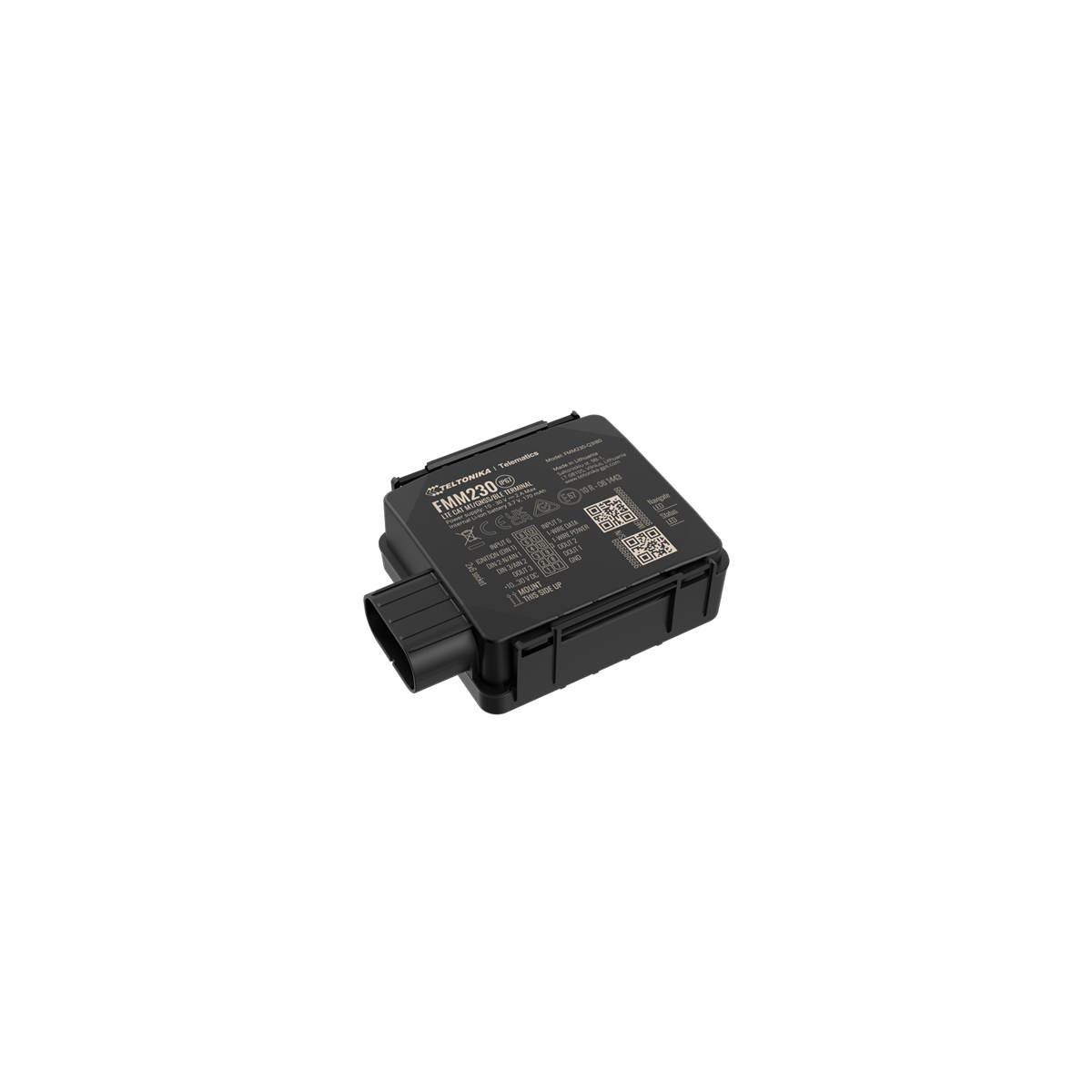

TELTONIKA FMM230 - 4G
€48.99
Tax included
The TELTONIKA FMM230 is a next-generation 4G LTE Cat 1 GPS tracker designed for high-voltage vehicles and advanced telematics applications. It integrates Teltonika's FT (Fleet Telematics) platform, combining intelligent firmware and optimized hardware for a superior tracking experience. Thanks to its enhanced GNSS accuracy (up to 41 visible satellites), it guarantees ultra-precise and stable location tracking for position-based services. Its IP69K waterproof housing offers maximum protection against dust, pressurized water, and steam, ensuring exceptional durability. Optimized sleep modes allow for extended battery life while significantly reducing vehicle battery consumption.
Sorry, no items left.
The TELTONIKA FMM230 is a next-generation 4G LTE Cat 1 GPS tracker designed for high-voltage vehicles and advanced telematics applications. It integrates Teltonika's FT (Fleet Telematics) platform, combining intelligent firmware and optimized hardware for a superior tracking experience. Thanks to its enhanced GNSS accuracy (up to 41 visible satellites), it guarantees ultra-precise and stable location tracking for position-based services. Its IP69K waterproof housing offers maximum protection against dust, pressurized water, and steam, ensuring exceptional durability. Optimized sleep modes allow for extended battery life while significantly reducing vehicle battery consumption.
Teltonika FMM230 – Technical Specifications
| MODULE | Teltonika FMM230 |
|---|---|
| Technology | 4G LTE Cat M1 / NB-IoT with 2G GSM fallback |
| IP rating | IP67 – dustproof and waterproof, suitable for harsh environments |
| Platform | Advanced LTE Cat M1 / NB-IoT tracker with internal high-gain GNSS and GSM antennas, ideal for outdoor use |
| GNSS | |
| Supported systems | GPS, GLONASS, GALILEO, BEIDOU, QZSS, SBAS |
| Receiver | 33 tracking channels |
| Tracking sensitivity | –165 dBM |
| Position accuracy | < 2.5 m CEP |
| Cold start | < 35 s |
| Warm start | < 25 s |
| Hot start | < 1 s |
| CELLULAR | |
| Network | LTE Cat M1 / NB-IoT with GSM fallback |
| LTE bands | B1, B2, B3, B4, B5, B8, B12, B13, B18, B19, B20, B26, B28 |
| 2G bands | 850 / 900 / 1800 / 1900 MHz (Quad-band) |
| Data transfer | TCP/UDP, MQTT, SMS (text/data), GPRS Class B |
| Power | |
| Input voltage range | 6 – 30 V DC with over-voltage protection |
| Internal backup battery | 170 mAh Li-Ion – allows operation during external power loss |
| Power saving | Supports Deep Sleep and Ultra Sleep modes for extended autonomy |
| Interfaces | |
| Bluetooth | Bluetooth 4.0 LE for wireless accessories and sensors |
| Digital inputs | 2 digital inputs |
| Digital outputs | 1 open-collector output |
| Analog inputs | 1 analog input |
| 1-Wire support | Driver ID via iButton / RFID, or temperature sensors |
| USB | Micro-USB for configuration and firmware updates |
| SIM | Micro-SIM slot |
| Memory | Internal flash memory for data logging during network unavailability |
| Physical | |
| Dimensions (L × W × H) | 79 × 43 × 12 mm |
| Weight | ≈ 63 g |
| Operating temperature | –40 °C to +85 °C |
| Operating humidity | 5 % – 95 % non-condensing |
| Housing | Plastic case (IP67 rated) resistant to water, dust and vibration |
| Features | |
| Sensors | Built-in accelerometer (motion, crash, towing detection) |
| Scenarios | Green driving, over-speeding, jamming detection, towing, crash detection, auto-geofence, trip, sleep mode |
| Sleep modes | Deep Sleep; Online Sleep; Power Off Sleep |
| Configuration & updates | FOTA WEB; Teltonika Configuration Tool (TCT) |
| Communication | SMS, TCP/UDP, GPRS commands for configuration and debug |
| Time synchronization | GNSS, NITZ, NTP |
| Ignition detection | Digital input, accelerometer or external power voltage |
| Certifications | CE / E-mark / RoHS / REACH compliant (region dependent) |
| Set of equipment | Teltonika FMM230 GPS tracker, optional SIM/server, user manual, 24-month warranty |
| Delivery | Fast worldwide delivery within 24 hours |
| Availability | |
| Distributor | Official Teltonika Distributor – Stock available – Worldwide delivery within 24 h – Best price guaranteed |
