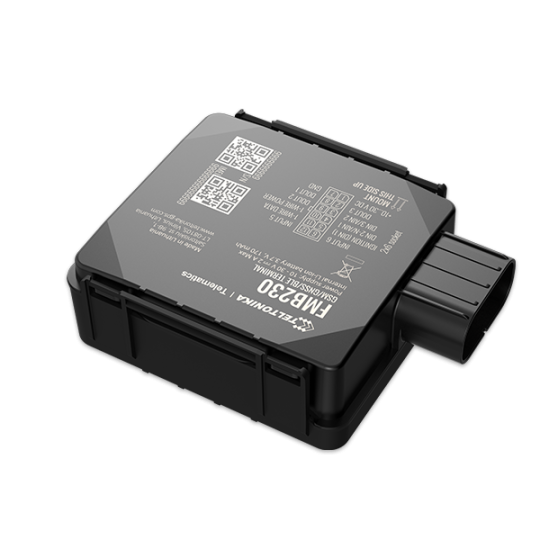

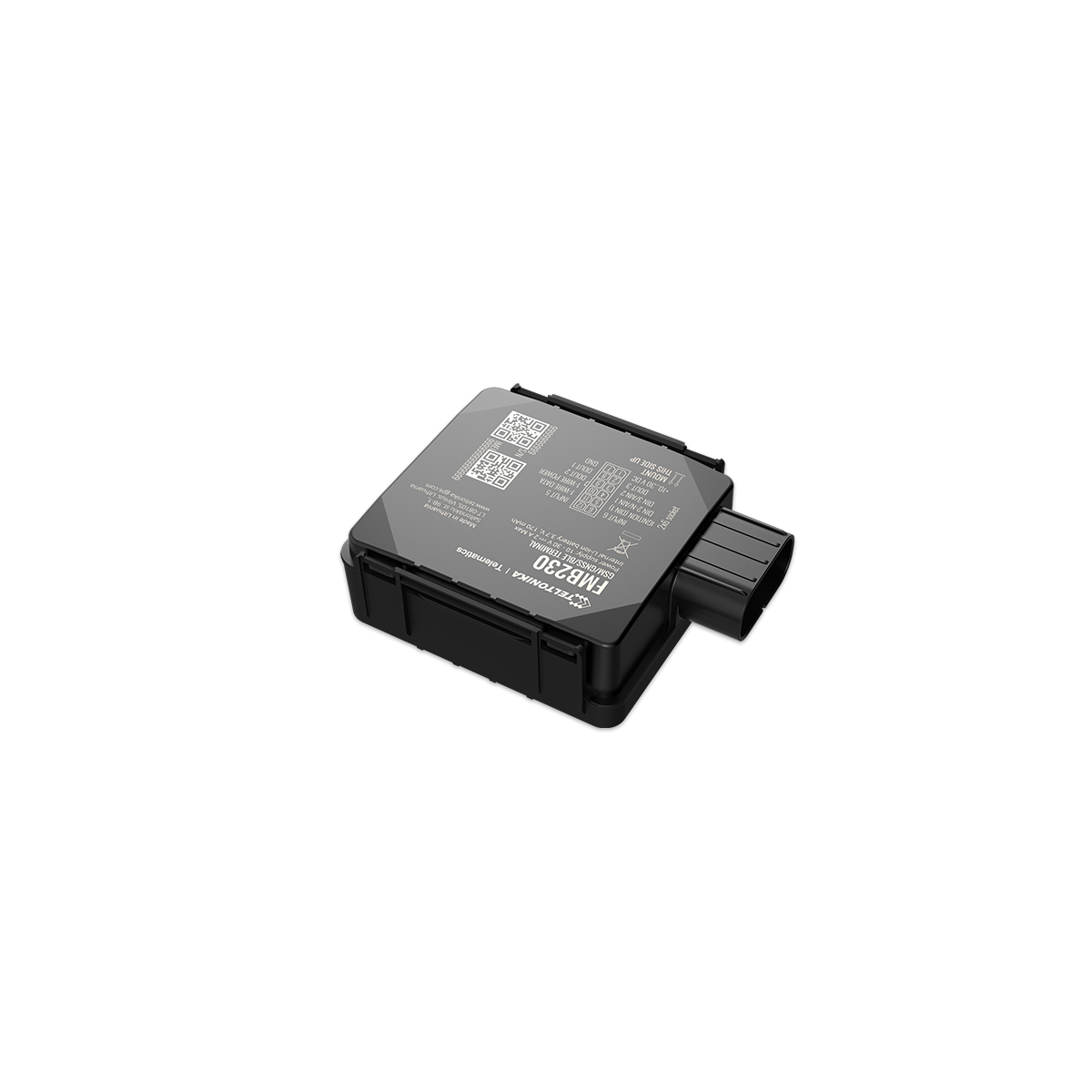

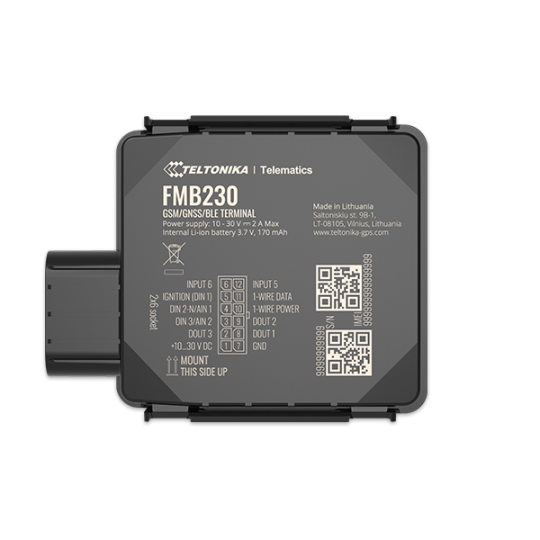

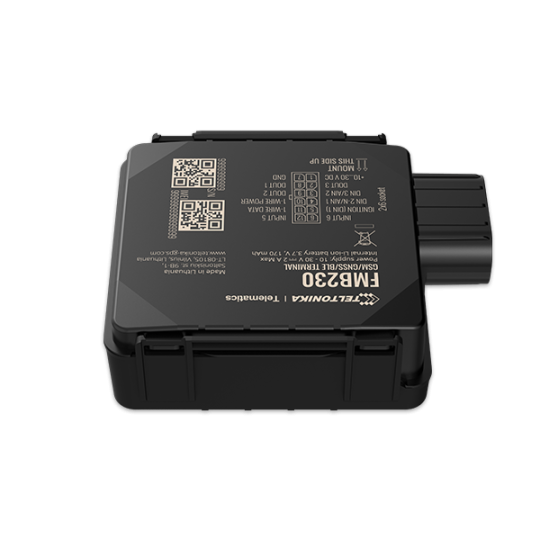

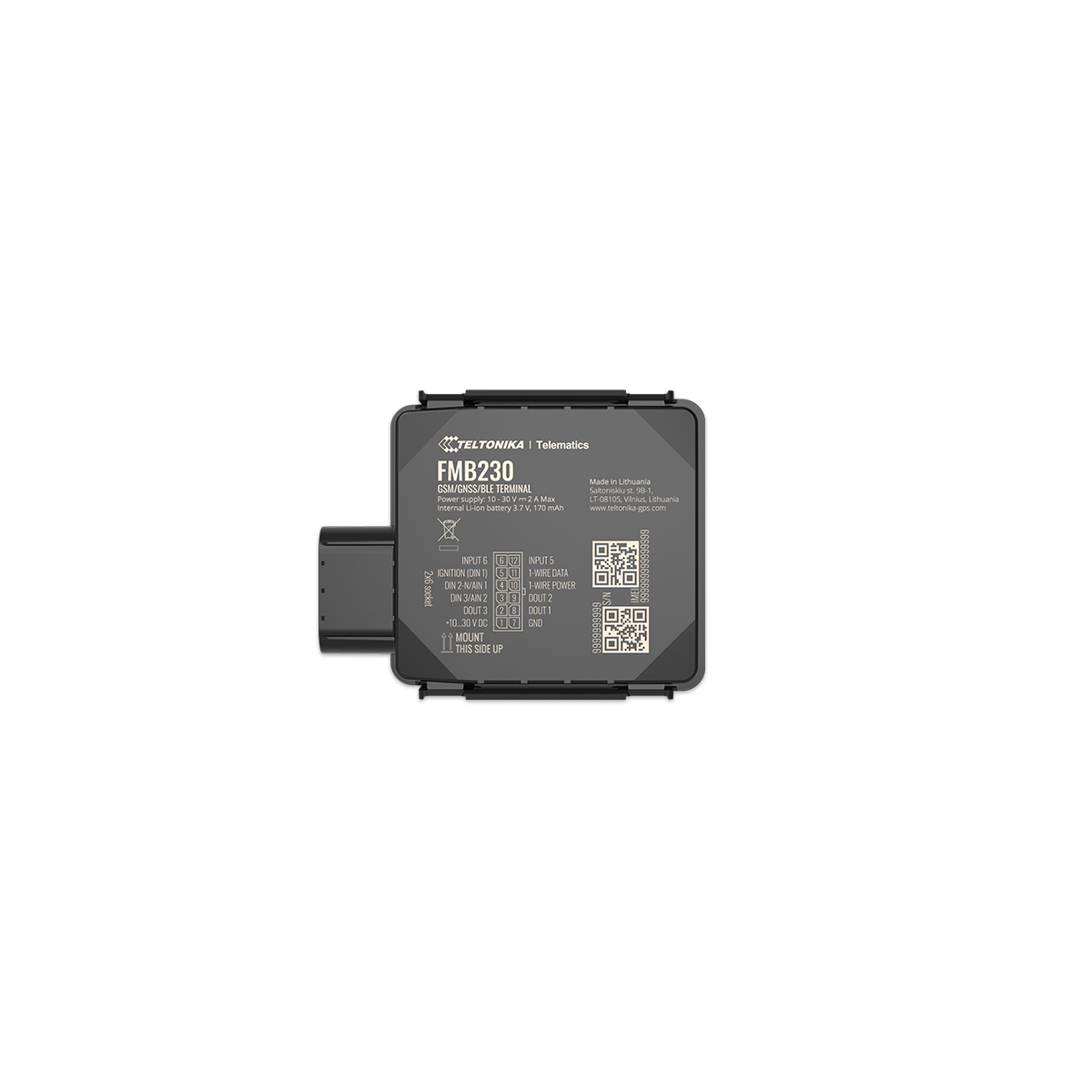

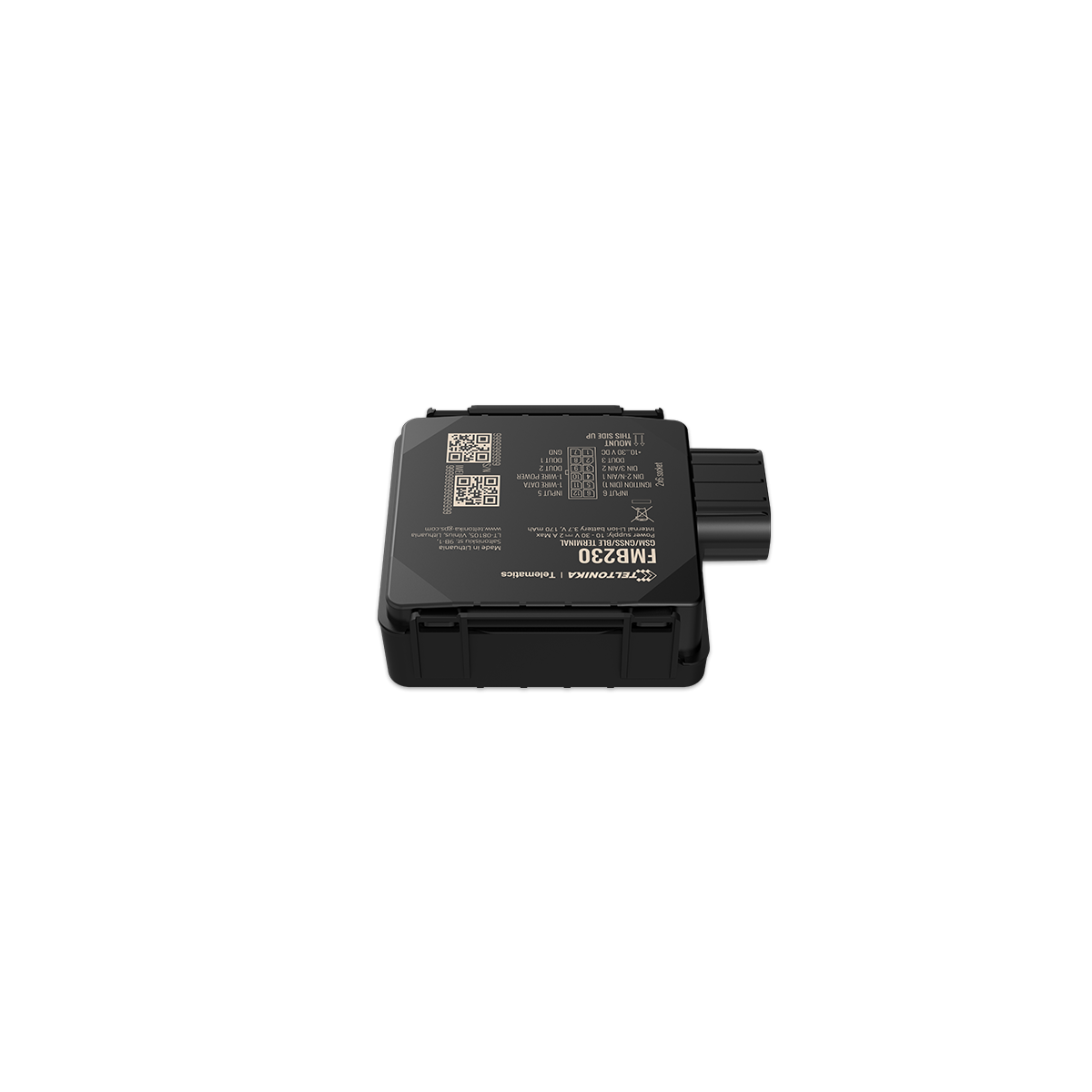

TELTONIKA FMB230
€39.00
Tax included
The TELTONIKA FMB230 is a 2G (GSM/GPRS) GPS tracker developed on the next-generation Teltonika GPS tracker platform. Designed for reliability and performance, it is water and dust resistant (IP67), making it ideal for demanding environments. Equipped with internal GNSS and GSM antennas, multiple configurable inputs (digital, analog, negative, and pulse), and three DOUT outputs, the FMB230 provides Bluetooth connectivity for communication with external sensors and an integrated backup battery for continuous operation in the event of a power outage. Its dedicated negative input greatly simplifies integration.
Sorry, no items left.
The TELTONIKA FMB230 is a 2G (GSM/GPRS) GPS tracker developed on the next-generation Teltonika GPS tracker platform. Designed for reliability and performance, it is water and dust resistant (IP67), making it ideal for demanding environments. Equipped with internal GNSS and GSM antennas, multiple configurable inputs (digital, analog, negative, and pulse), and three DOUT outputs, the FMB230 provides Bluetooth connectivity for communication with external sensors and an integrated backup battery for continuous operation in the event of a power outage. Its dedicated negative input greatly simplifies integration.
Teltonika FMB230 – Technical Specifications
| MODULE | Teltonika FMB230 |
|---|---|
| Technology | GSM / GPRS / GNSS / Bluetooth® LE |
| GNSS | |
| GNSS systems | GPS, GLONASS, GALILEO, BEIDOU, QZSS, AGPS |
| Receiver | 33 tracking channels |
| Tracking sensitivity | -165 dBm |
| Position accuracy | < 2.5 m CEP |
| Hot start | < 1 s |
| Warm start | < 25 s |
| Cold start | < 35 s |
| CELLULAR / NETWORK | |
| 2G bands | Quad-band 850 / 900 / 1800 / 1900 MHz |
| Data transfer | GPRS Multi-Slot Class 12 (up to 240 kbps), GPRS Mobile Station Class B |
| Data support | SMS (text/data), GPRS |
| POWER | |
| Input voltage range | 10 – 30 V DC (with overvoltage protection) |
| Backup battery | 170 mAh Li-Ion, 3.7 V (0.63 Wh) |
| Internal fuse | 3 A / 125 V |
| Power consumption | Ultra Deep Sleep: < 2.5 mA @ 12 V Deep Sleep: < 5.0 mA @ 12 V Online Deep Sleep: < 5.5 mA @ 12 V GPS Sleep: < 18.5 mA @ 12 V Nominal (no load): < 34 mA @ 12 V |
| BLUETOOTH | |
| Specification | Bluetooth 4.0 + LE |
| Supported peripherals | Capteurs BLE (température, humidité, etc.), dongles, scanners, périphériques compatibles BLE |
| INTERFACES & CONNECTIVITÉ | |
| Digital Inputs | 3 |
| Negative Input | 1 (DIN2) |
| Impulse Inputs | 2 (DIN1, DIN2) |
| Analog Inputs | 2 |
| Digital Outputs (DOUT) | 3 |
| CAN adapter input | 1 (LVCAN RX/TX) |
| 1-Wire interface | 1 (ex : capteur température / iButton) |
| GNSS antenna | Internal high-gain |
| GSM antenna | Internal high-gain |
| USB | Micro-USB 2.0 |
| LED indication | 2 status LEDs |
| SIM | Micro-SIM (carte) + eSIM possible |
| Memory | 128 MB internal flash memory |
| PHYSICAL & ENVIRONMENT | |
| Dimensions (L × W × H) | 70.5 × 67.0 × 25.6 mm (boîtier) |
| Weight | ≈ 75 g |
| Ingress Protection | IP67 (dust & water resistant) |
| Operating temperature (device) | -40 °C to +85 °C |
| Operating humidity | 5 % to 95 % non-condensing |
| FEATURES | |
| Sensors | Built-in accelerometer (movement, shock detection) |
| Functions & scenarios | Real-time tracking, data logging, virtual odometer, ignition detection, jamming detection, fuel flow meter monitoring (via impulse input), CAN data reading (via adapter), DOUT control (alarms, relais…), BLE sensor integration, configurable I/O events, remote configuration via SMS/GPRS, optional eSIM |
