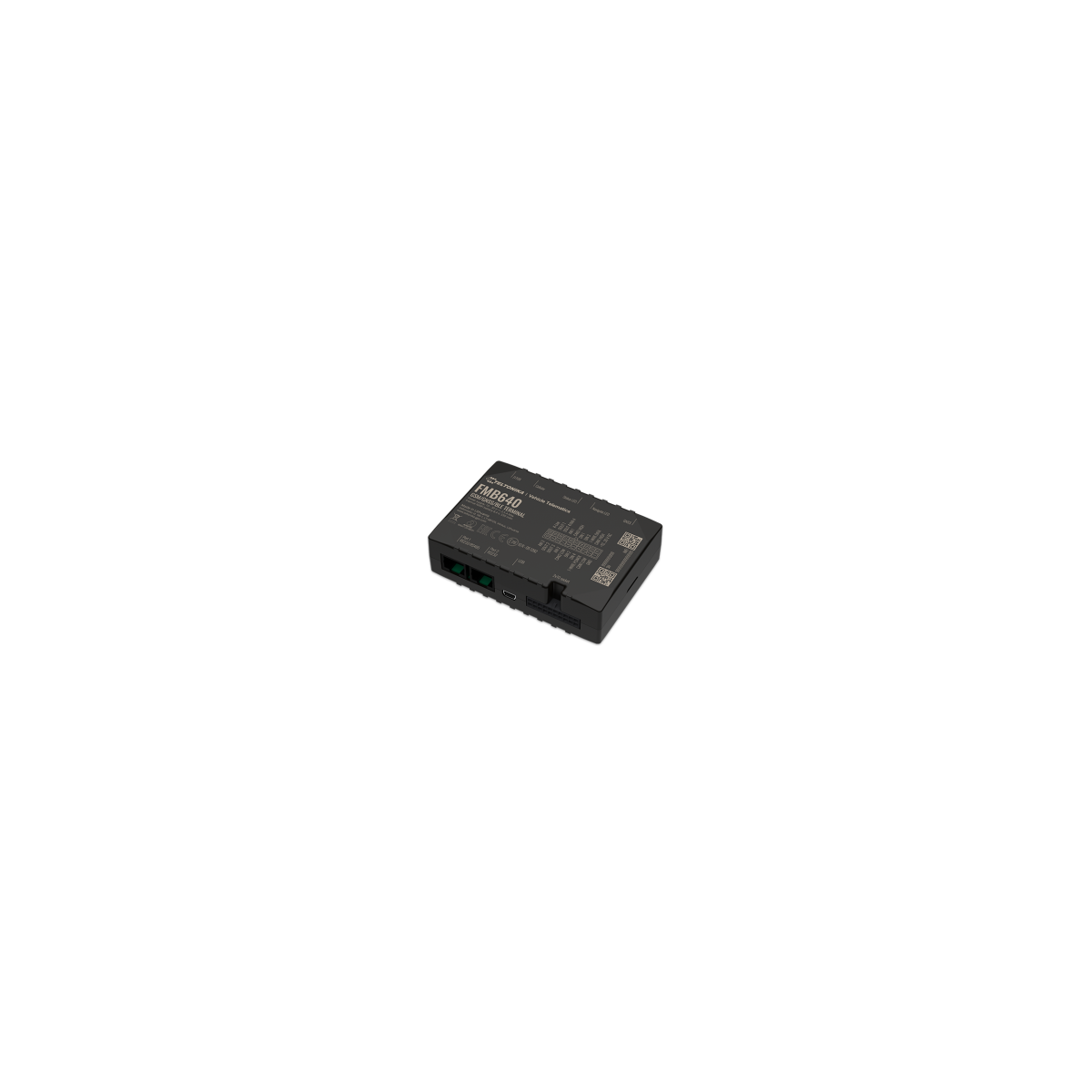

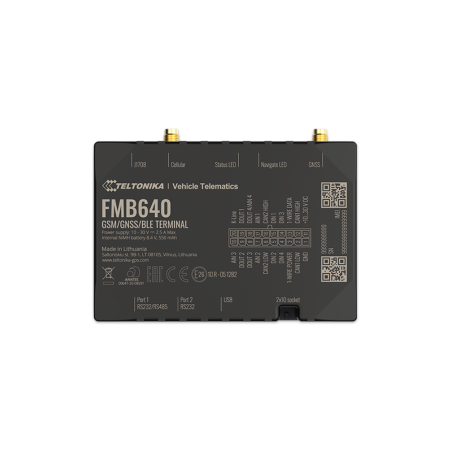

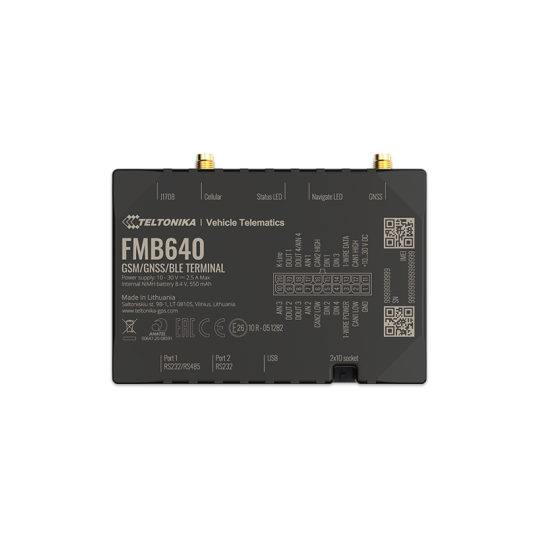

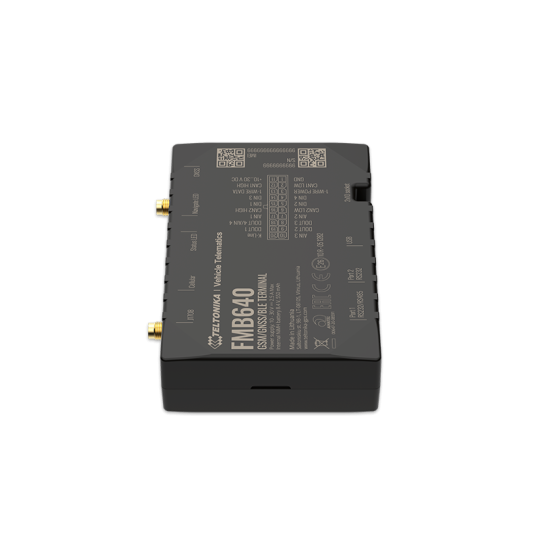

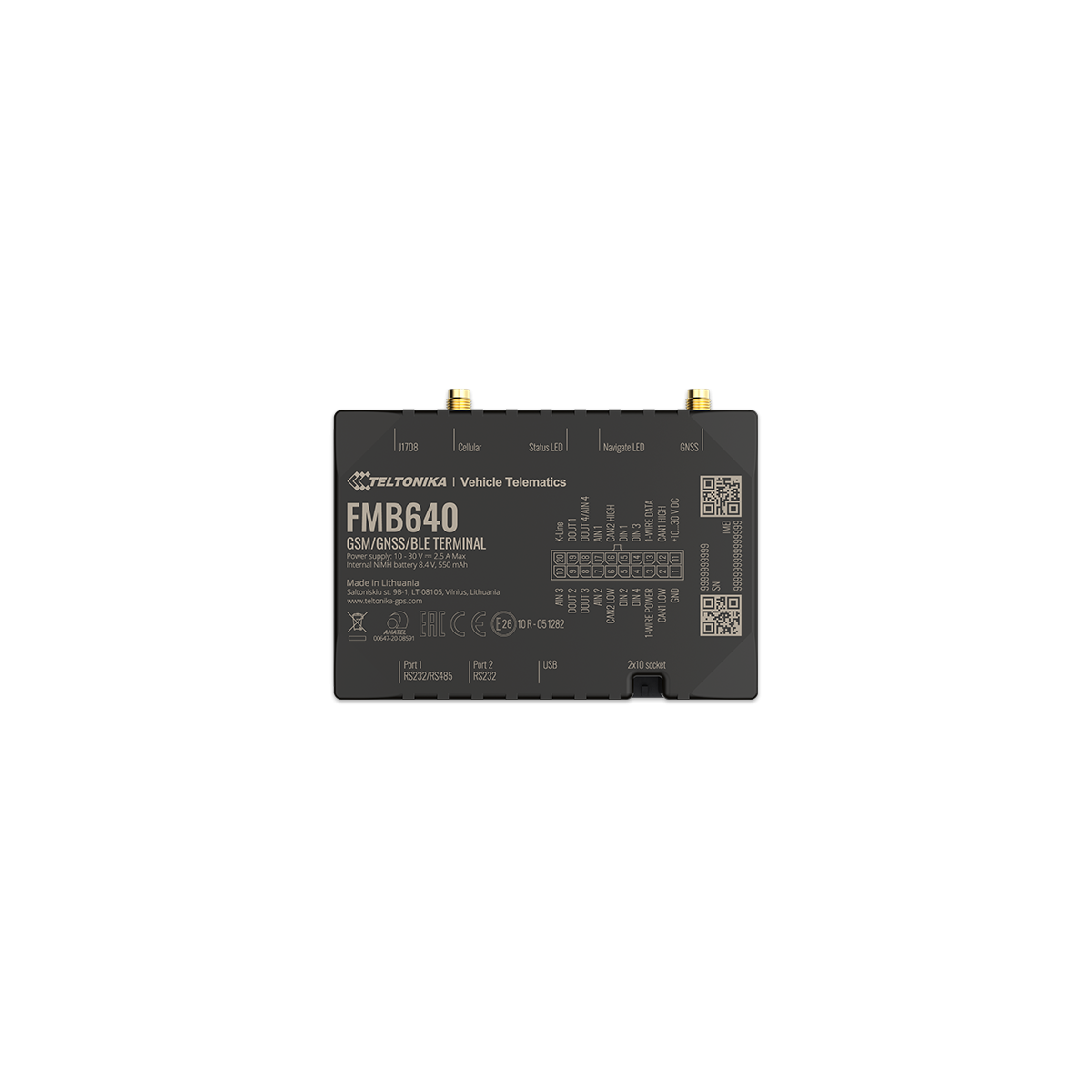

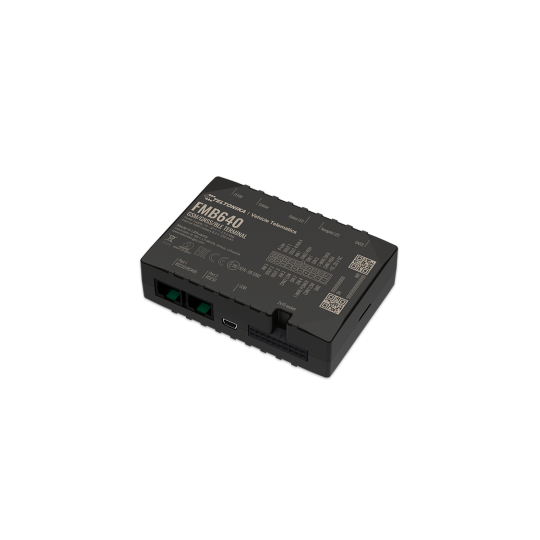

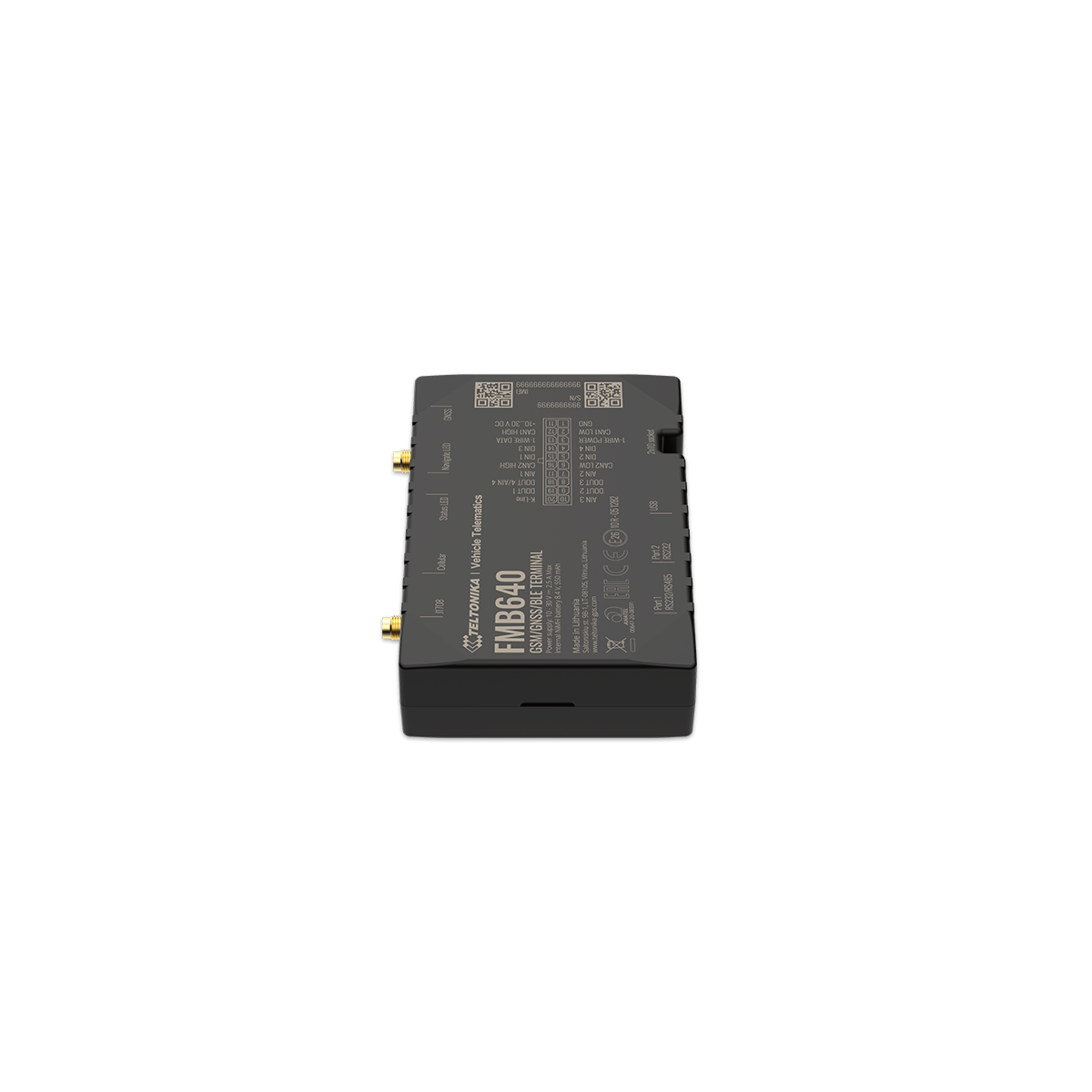

TELTONIKA FMB640
€68.00
Tax included
The **TELTONIKA FMB640**, offered at the **best price**, is a **professional GNSS/GSM terminal** designed for the most demanding applications. Developed for **complex solutions**, it allows a single device to perform multiple tasks simultaneously. Its **advanced features** include reading **FMS CAN data**, **fuel CAN data**, real-time access to **tachograph data**, **remote download of tachograph files**, and **compatibility with numerous third-party devices** via **RS232 or RS485**. It also supports **Dual-SIM** or **eSIM**, ensuring **stable and continuous connectivity**. The **FMB640** is ideal for fields such as **international logistics**, **refrigerated transport**, **agriculture**
Sorry, no items left.
The **TELTONIKA FMB640**, offered at the **best price**, is a **professional GNSS/GSM terminal** designed for the most demanding applications. Developed for **complex solutions**, it allows a single device to perform multiple tasks simultaneously. Its **advanced features** include reading **FMS CAN data**, **fuel CAN data**, real-time access to **tachograph data**, **remote download of tachograph files**, and **compatibility with numerous third-party devices** via **RS232 or RS485**. It also supports **Dual-SIM** or **eSIM**, ensuring **stable and continuous connectivity**. The **FMB640** is ideal for fields such as **international logistics**, **refrigerated transport**, **agriculture**, **construction**, **mining**, as well as **security and emergency services**, thus optimizing efficiency and large-scale fleet management.
Teltonika FMB640 – Technical Specifications
| MODULE | Teltonika TM2500 |
|---|---|
| Technology | GSM / GPRS / GNSS / Bluetooth LE |
| GNSS | |
| GNSS systems supported | GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS / AGPS :contentReference[oaicite:1]{index=1} |
| Receiver | 33 / 99 acquisition channels :contentReference[oaicite:2]{index=2} |
| Tracking sensitivity | -165 dBm :contentReference[oaicite:3]{index=3} |
| Position accuracy | < 2.5 m CEP :contentReference[oaicite:4]{index=4} |
| Hot start | < 1 s :contentReference[oaicite:5]{index=5} |
| Warm start | < 25 s :contentReference[oaicite:6]{index=6} |
| Cold start | < 35 s :contentReference[oaicite:7]{index=7} |
| CELLULAR / NETWORK | |
| 2G bands | Quad-band GSM 850 / 900 / 1800 / 1900 MHz :contentReference[oaicite:8]{index=8} |
| Data transfer | GPRS Multi-Slot Class 12 (up to 240 kbps), GPRS Mobile Station Class B :contentReference[oaicite:9]{index=9} |
| Data support | SMS (text / data), TCP/UDP, server upload via GPRS/SMS :contentReference[oaicite:10]{index=10} |
| POWER / BATTERY | |
| Input voltage range | 10 – 30 V DC (with overvoltage protection) :contentReference[oaicite:11]{index=11} |
| Internal backup battery | 550 mAh Ni-Mh, 8.4 V (backup) :contentReference[oaicite:12]{index=12} |
| INTERFACES & CONNECTIVITY | |
| Digital Inputs | 4 × Digital Inputs :contentReference[oaicite:13]{index=13} |
| Analog Inputs | 4 × Analog Inputs :contentReference[oaicite:14]{index=14} |
| Digital Outputs (DOUT) | 4 × Digital Outputs (open-collector) :contentReference[oaicite:15]{index=15} |
| 1-Wire interface | 1 × 1-Wire (capteur température, iButton, etc.) :contentReference[oaicite:16]{index=16} |
| Serial interfaces | RS232 ×2, RS485 ×1 — connexion périphériques externes (tachygraphe, capteurs, RFID, etc.) :contentReference[oaicite:17]{index=17} |
| CAN / J1939 / J1708 / K-Line support | Oui — lecture CAN (FMS, J1939), CAN carburant (J1708), données tachygraphe via K-Line / CAN ou J1708 selon véhicule. :contentReference[oaicite:18]{index=18} |
| GNSS & Cellular antennas | Antennes externes haut gain (GNSS + GSM) incluses :contentReference[oaicite:19]{index=19} |
| USB | Mini-USB 2.0 (configuration / log) :contentReference[oaicite:20]{index=20} |
| SIM slots | Dual-SIM support :contentReference[oaicite:21]{index=21} |
| Memory | 2 MB internal flash + slot Micro-SD (jusqu’à 32 GB) pour enregistrement log/évènements :contentReference[oaicite:22]{index=22} |
| PHYSICAL & ENVIRONMENT | |
| Dimensions (L × W × H) | 104.1 × 76.8 × 31.5 mm :contentReference[oaicite:23]{index=23} |
| Weight | 197 g ≈ :contentReference[oaicite:24]{index=24} |
| Ingress Protection Rating | IP41 (protection contre poussières & projections d’eau) :contentReference[oaicite:25]{index=25} |
| Operating temperature (device) | -40 °C to +85 °C :contentReference[oaicite:26]{index=26} |
| Operating humidity | 5% to 95% non-condensing :contentReference[oaicite:27]{index=27} |
| FEATURES & FUNCTIONS | |
| Built-in sensor | Accelerometer (mouvement, crash, comportement conduite) :contentReference[oaicite:28]{index=28} |
| Use cases & capabilities | Situation CAN / FMS / J1939 for heavy vehicles, tachograph data reading & remote download, fuel monitoring via CAN or capteurs, gestion flotte, transport réfrigéré, transport lourd, agriculture, construction, etc. :contentReference[oaicite:29]{index=29} |
| Sleep modes & power saving | Deep Sleep, GNSS Sleep, modes économie d'énergie pour consommation minimale :contentReference[oaicite:30]{index=30} |
| Remote configuration & update | FOTA Web, firmware update via GSM/GPRS; configuration via SMS, USB, RS232 / RS485, Bluetooth / 1-Wire (équipements externes) :contentReference[oaicite:31]{index=31} |
| Driver & vehicle identification support | iButton / RFID via 1-Wire ou RS232/RFID, compatible avec tachygraphe et identification chauffeur / matériel :contentReference[oaicite:32]{index=32} |
